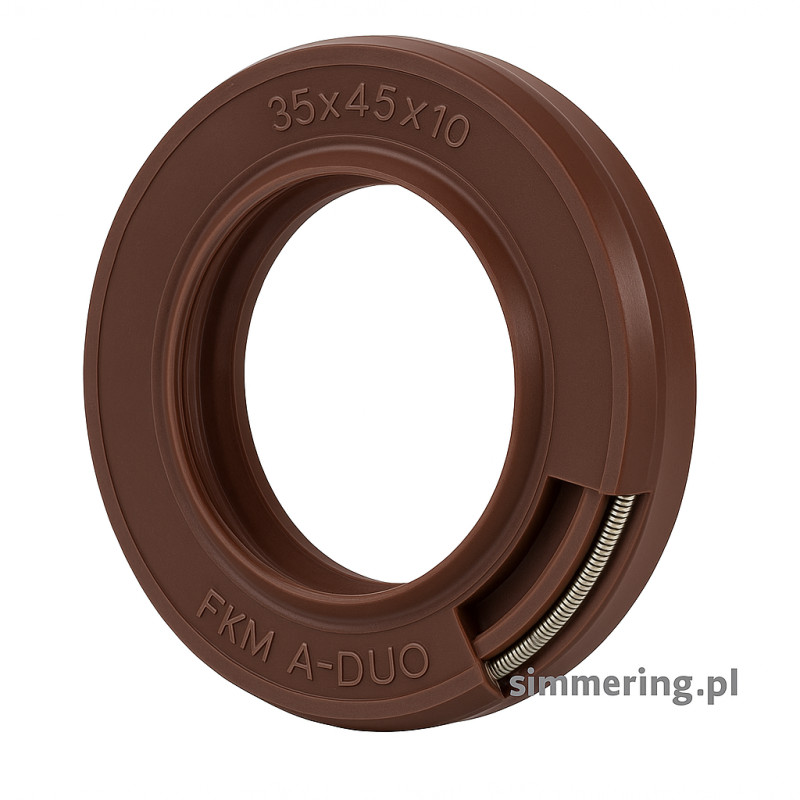

Rotary Shaft Seal 35x45x10 A‑DUO FKM - Double‑Lip Radial Oil Seal

The Rotary Shaft Seal 35x45x10 A‑DUO FKM is a high-performance radial rotary shaft seal designed for demanding industrial and automotive environments. Featuring a double‑lip (A‑DUO) profile and made of premium FKM (fluoroelastomer), this rotary oil seal delivers excellent resistance to oil, grease, chemicals, and high temperatures. Enhanced by a dust lip and integrated garter spring, it excels at keeping contaminants out while protecting rotating shafts

Key Specifications

• Internal Diameter: 35 mm

• External Diameter: 45 mm

• Thickness: 10 mm

• Material: Fluoroelastomer (FKM/Viton) - preferred for its superior chemical and thermal resistance

• Design: Double-lip with dust lip (A‑DUO) + spring-loaded primary lip for enhanced sealing force

• Housing: Rubber-coated or metal-reinforced outer diameter as per DIN 3760 standards

Why Choose It?

• Proven performance as a radial oil seal and rotary shaft seal

• Double-lip and dust-lip architecture ensures superior contamination control

• FKM material withstands extreme temperatures and aggressive media

• Garter spring maintains consistent lip pressure for leak-free operation

• Compliant with ISO 6194 and DIN 3760 standards for shaft seals

🔑 Keywords

❓ FAQ

Q: What is an A‑DUO seal?
A: “A‑DUO” means a double-lip seal, including a secondary dust lip, offering enhanced protection from contaminants.

Q: What materials are used?
A: Made from FKM (fluoroelastomer/Viton) for high durability, chemical and thermal resistance.

Q: What dimensions does it cover?
A: 35 mm inner diameter, 45 mm outer diameter, 10 mm thickness

Q: What role does the spring play?
A: The integrated garter spring maintains consistent sealing lip pressure even under wear.

Q: Suitable temperature and media?
A: Ideal for oil, grease, solvents, and high-temperature conditions up to ~200 °C.

Q: Standards compliance?
A: Designed according to DIN 3760 and ISO 6194 for radial shaft seals

Q: Delivery info?
A: 📦 Order now - 24h B2B delivery from simmering.pl
📍 Warehouse: Smoluchowskiego 1, Building 4, Lublin, Poland
