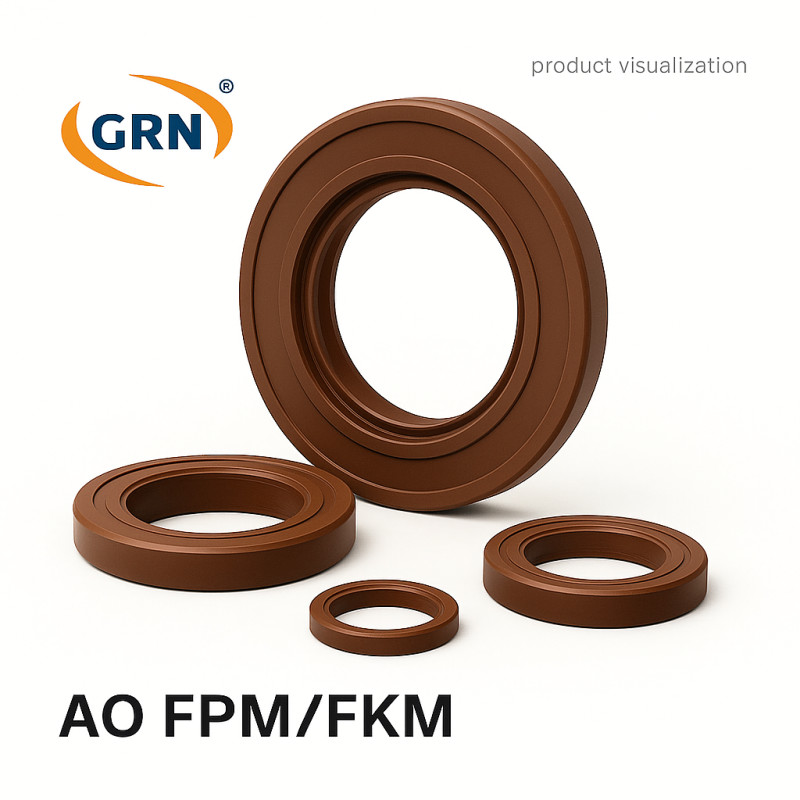

Applications of the 130x160x15 FPM TC Rotary Shaft Seal

The 130x160x15 FPM TC shaft seal is a high-performance rotary shaft seal designed for reliable oil sealing in demanding industrial and automotive environments. This double lip oil seal (TC) features a primary sealing lip for oil retention and a secondary dust lip that protects the sealing area from external contamination. It is widely used in gearboxes, engines, pumps, compressors, axles and rotating machinery where long service life and stable sealing are required.

Thanks to its precise geometry and robust construction, this shaft sealing ring performs consistently under continuous rotation, making it suitable for industrial applications and heavy-duty automotive systems where contamination control and oil retention are critical.

FPM Material Advantages and High Durability

Manufactured from FPM (FKM fluorocarbon rubber, Viton type), this rotary oil seal offers excellent resistance to oils and grease, fuels and many aggressive chemical media. FPM is specifically chosen for applications involving elevated operating temperatures and extended service intervals, outperforming standard elastomers in harsh conditions.

The double lip oil seal design improves sealing reliability by combining effective oil retention with additional protection against dust and debris. This results in high durability, reduced shaft wear and stable performance over time, even in environments with fluctuating temperatures and continuous load.

Technical Data

• Product type: rotary shaft seal / oil seal

• Design: TC - double lip oil seal with dust lip

• Material: FPM / FKM (fluorocarbon rubber, Viton)

• Inner diameter: 130 mm

• Outer diameter: 160 mm

• Width: 15 mm

• Sealing function: rotary sealing

• Typical use: engine seal, gearbox seal, technical seal

• Applications: hydraulic and automotive seals, industrial machinery

FAQ - Frequently Asked Questions

What is the difference between a single lip and a double lip oil seal?
A double lip oil seal includes an additional dust lip that protects against external contamination, while a single lip seal focuses only on oil retention.

Why choose FPM instead of NBR for shaft seals?
FPM offers superior resistance to high temperatures, oils and chemicals, ensuring longer service life in demanding conditions.

Is this TC shaft seal suitable for high-temperature applications?
Yes, FPM material is designed for elevated temperatures and continuous operation.

Can this seal be used in industrial machinery?
Yes, it is suitable for a wide range of industrial applications requiring reliable rotary sealing.

How do I select the correct shaft seal size?
The seal must match the shaft diameter, housing diameter and width exactly, such as 130x160x15 in this
