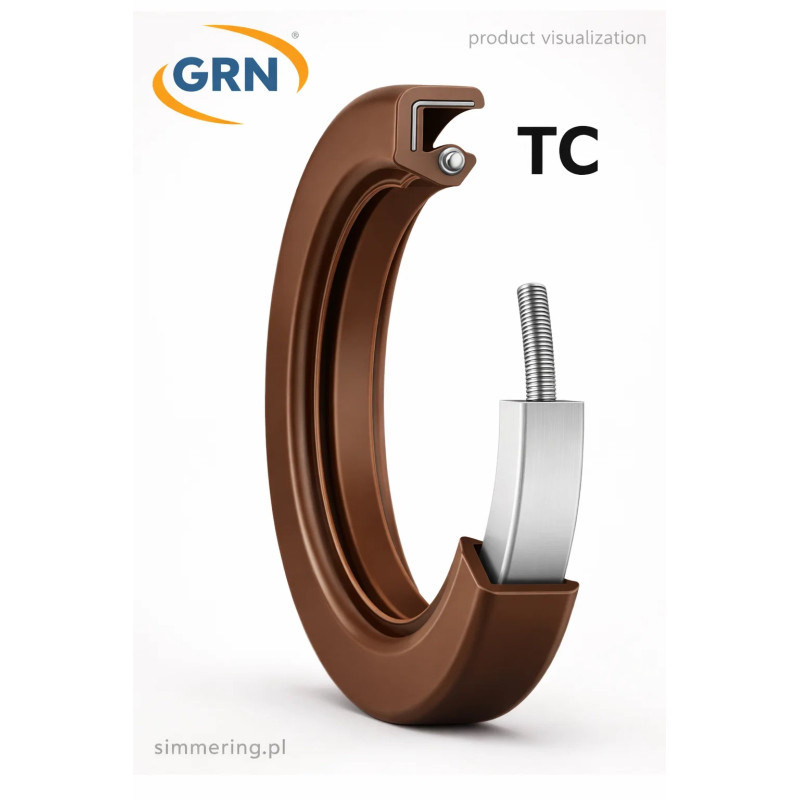

FPM 60x80x8 SS Viton Rotary Shaft Seal

Construction and design

FPM 60x80x8 SS is a high performance rotary shaft seal made from Viton fluorocarbon elastomer, designed for demanding industrial environments requiring superior chemical and thermal resistance.

This seal features a primary sealing lip supported by a garter spring, ensuring stable contact with the shaft and effective retention of lubricants. The SS designation indicates a stainless steel spring, providing enhanced resistance to corrosion and making the seal suitable for aggressive environments, including moisture, chemicals and food processing conditions.

The compact 8 mm width allows installation in applications with limited mounting space while maintaining high sealing performance.

Industrial applications

FPM 60x80x8 SS rotary shaft seal is widely used in chemical processing equipment, hydraulic systems, pumps, compressors and industrial machinery operating under elevated temperatures.

The 60x80x8 mm Viton oil seal is particularly suitable for applications where standard NBR seals are insufficient due to temperature or chemical exposure.

Technical specifications

Type: rotary shaft seal
Material: FPM FKM Viton
Model: SS
Inner diameter: 60 mm
Outer diameter: 80 mm
Width: 8 mm
Design: primary sealing lip
Spring: stainless steel garter spring
Chemical resistance: very high
Temperature range: -20 to +200 C

Operational advantages

FPM 60x80x8 SS provides excellent resistance to high temperatures, aggressive chemicals and aging. The Viton material significantly extends service life compared to standard elastomers.

The stainless steel spring ensures reliable operation in corrosive environments, making this seal ideal for demanding industrial applications.

Dimensional compatibility

The 60x80x8 FPM SS oil seal is a standard industrial size and can replace equivalent radial shaft seals with matching dimensions and specifications.

Search phrases such as Viton oil seal 60x80x8, FPM shaft seal, high temperature oil seal or rotary shaft seal 60x80x8 strengthen its visibility within the FKM seal category.

Main description

FPM 60x80x8 SS is a high temperature Viton rotary shaft seal designed to retain lubricants and withstand aggressive environments in industrial applications.

The 60x80x8 FPM SS seal ensures long service life, chemical resistance and reliable sealing performance in demanding operating conditions.

FAQ

Where is FPM 60x80x8 SS used
It is used in chemical, hydraulic and high temperature industrial systems.

What does FPM or Viton mean
It is a fluorocarbon material resistant to heat and chemicals.

What does SS mean
It indicates a stainless steel spring.

Is it suitable for high temperature
Yes, it can operate up to approximately 200 C.

Is it better than NBR
Yes, for high temperature and aggressive environments.
