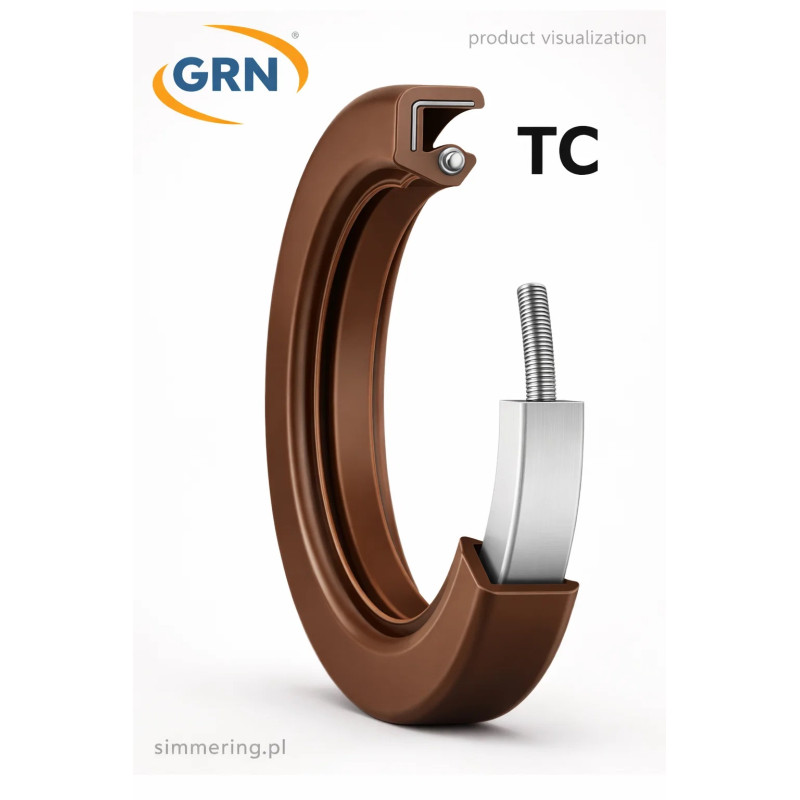

FPM 80x110x10 TC SS Viton Double Lip Rotary Shaft Seal

Construction and design

FPM 80x110x10 TC SS is a high performance rotary shaft seal made from Viton fluorocarbon elastomer, engineered for demanding industrial environments requiring superior resistance to temperature and aggressive media.

The TC design features a double lip configuration with a primary sealing lip supported by a garter spring and a secondary dust lip. This ensures effective lubricant retention while protecting against external contamination such as dust, moisture and particles.

The SS designation indicates a stainless steel garter spring, providing enhanced corrosion resistance and allowing reliable operation in humid, chemical and food processing environments.

Industrial applications

FPM 80x110x10 TC SS rotary shaft seal is widely used in chemical processing systems, pumps, gearboxes, mixers and industrial machinery operating under elevated temperatures and aggressive working conditions.

The 80x110x10 mm Viton oil seal is particularly suitable for applications where standard NBR seals are not sufficient due to thermal or chemical exposure.

Technical specifications

Type: rotary shaft seal
Material: FPM FKM Viton
Model: TC double lip SS
Inner diameter: 80 mm
Outer diameter: 110 mm
Width: 10 mm
Design: primary lip plus dust lip
Spring: stainless steel garter spring
Chemical resistance: very high
Temperature range: -20 to +200 C

Operational advantages

FPM 80x110x10 TC SS offers excellent resistance to high temperatures, aggressive chemicals and environmental exposure. The double lip design improves sealing efficiency and protects against contamination.

The stainless steel spring ensures durability in corrosive environments, while the Viton material significantly extends service life compared to standard elastomers.

Dimensional compatibility

The 80x110x10 FPM TC SS oil seal is a standard industrial size and can replace equivalent rotary shaft seals with matching dimensions and specifications.

Search phrases such as Viton oil seal 80x110x10, FPM shaft seal, double lip oil seal, stainless spring oil seal or rotary shaft seal 80x110x10 improve its visibility within the FKM seal category.

Main description

FPM 80x110x10 TC SS is a double lip Viton rotary shaft seal with a stainless steel spring, designed to retain lubricants and protect against contaminants in high temperature and chemically aggressive environments.

The 80x110x10 FPM TC SS seal ensures long service life, corrosion resistance and reliable sealing performance in demanding industrial applications.

FAQ

Where is FPM 80x110x10 TC SS used
It is used in pumps, chemical processing systems and industrial machinery.

What does TC mean
It refers to a double lip sealing design with dust protection.

What does SS mean
It indicates a stainless steel spring for corrosion resistance.

What does FPM or Viton mean
It is a fluorocarbon material resistant to heat and chemicals.

Is it suitable for high temperature
Yes, it can operate up to approximately 200 C.
