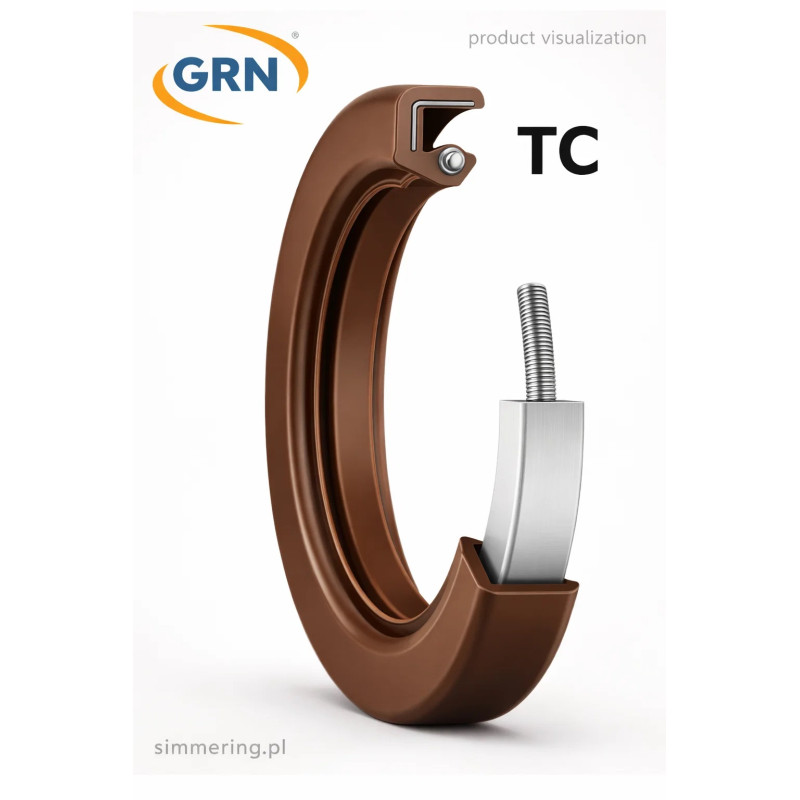

FPM 54x72x10 TC Viton Double Lip Rotary Shaft Seal

Construction and design

FPM 54x72x10 TC is a high performance rotary shaft seal manufactured from Viton fluorocarbon elastomer, designed for demanding industrial applications requiring excellent resistance to heat and aggressive media.

The TC design features a double lip configuration with a primary sealing lip supported by a garter spring and an additional dust lip. This ensures effective oil retention while protecting the system against contamination from dust, moisture and external particles.

The FPM FKM Viton material provides superior resistance to oils, fuels, chemicals and elevated temperatures, making this seal suitable for harsh operating environments.

Industrial applications

FPM 54x72x10 TC rotary shaft seal is widely used in pumps, gearboxes, hydraulic systems and industrial machinery operating under high temperature conditions or exposure to aggressive fluids.

The 54x72x10 mm Viton oil seal is particularly effective in applications where standard NBR seals cannot deliver sufficient durability or chemical resistance.

Technical specifications

Type: rotary shaft seal
Material: FPM FKM Viton
Model: TC double lip
Inner diameter: 54 mm
Outer diameter: 72 mm
Width: 10 mm
Design: primary lip plus dust lip
Spring: garter spring included
Chemical resistance: very high
Temperature range: -20 to +200 C

Operational advantages

FPM 54x72x10 TC offers outstanding resistance to high temperatures, aggressive chemicals and aging. The double lip design improves sealing efficiency and extends equipment service life.

The Viton material ensures long term performance and reliability even in demanding industrial conditions.

Dimensional compatibility

The 54x72x10 FPM TC oil seal is a standard industrial size and can replace equivalent rotary shaft seals with matching dimensions and specifications.

Search phrases such as Viton oil seal 54x72x10, FPM shaft seal, double lip oil seal or rotary shaft seal 54x72x10 enhance its visibility within the FKM seal category.

Main description

FPM 54x72x10 TC is a double lip Viton rotary shaft seal designed to retain lubricants and protect against contaminants in high temperature industrial applications.

The 54x72x10 FPM TC seal ensures long service life, chemical resistance and reliable sealing performance in demanding environments.

FAQ

Where is FPM 54x72x10 TC used
It is used in pumps, hydraulic systems and industrial machinery.

What does TC mean
It refers to a double lip sealing design with dust protection.

What does FPM or Viton mean
It is a fluorocarbon material resistant to heat and chemicals.

Is it suitable for high temperature
Yes, it can operate up to approximately 200 C.

Is it better than NBR
Yes, for high temperature and aggressive environments.
