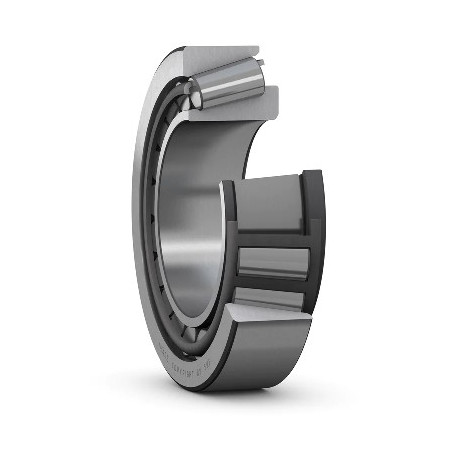

30213 VKBC1000 SKF 65x120x24.75 Single row tapered roller bearing
Processing time: 2-3 days
€23.66
(net)
Price for: 1pcs.
Tapered roller bearing
30213 VKBC1000 SKF
65x120x24.75
Single row tapered roller bearing
Dimensions
| Bore diameter | 65 mm |
| Contact angle | 15.109 ° |
| Outside diameter | 120 mm |
| Width, inner ring | 23 mm |
| Width, outer ring | 20 mm |
| Width, total | 24.75 mm |
Performance
| Basic dynamic load rating | 141 kN |
| Basic static load rating | 134 kN |
| Limiting speed | 5 600 r/min |
| Reference speed | 4 500 r/min |
Single row tapered roller bearings are designed to accommodate combined radial and axial loads and provide low friction during operation. The inner ring, with rollers and cage, can be mounted separately from the outer ring. These separable and interchangeable components facilitate mounting, dismounting and maintenance. By mounting one single row tapered roller bearing against another and applying a preload, a rigid bearing application can be achieved.
- High radial and axial load carrying capacity
- Accommodate axial loads in one direction
- Low friction and long service life
- Separable and interchangeable components
30213 VKBC1000 SKF
Processing time: 2-3 days
Data sheet
- Diameter in. (mm)
- 65
- Diameter out. (mm)
- 120
- Height (mm)
- 24.75
- Mark
- SKF
