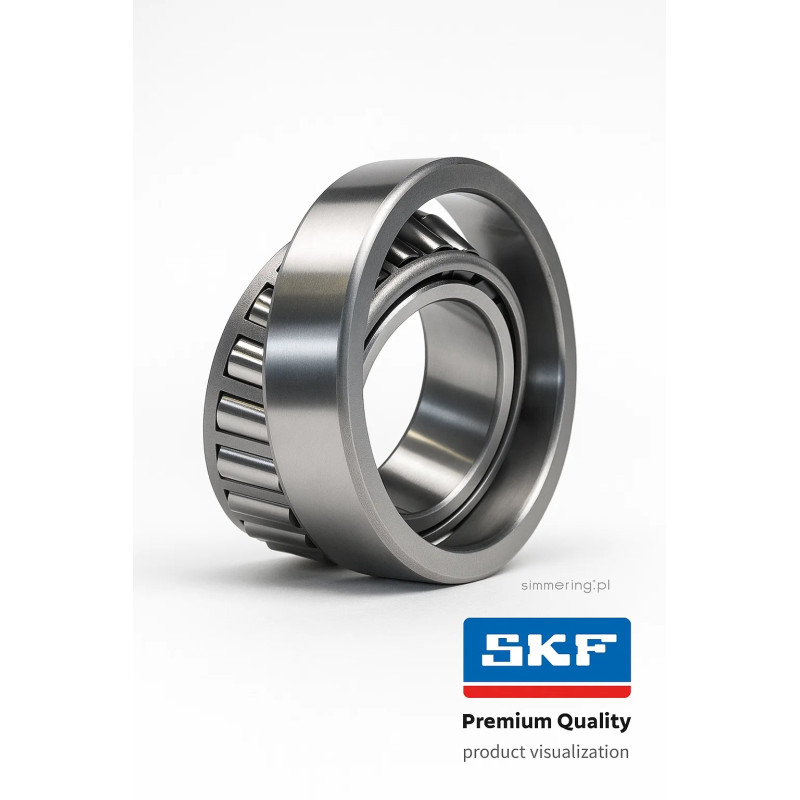

32005 X/Q SKF 25x47x15 Tapered Roller Bearing

Construction and Design

32005 X/Q SKF 25x47x15 tapered roller bearing is a single row rolling bearing designed to carry combined radial and axial loads in compact mechanical assemblies. This model strengthens the SKF tapered roller bearings category in the 25 mm bore segment, widely used in light industrial and automotive drive systems.

The tapered design consists of conical inner and outer ring raceways combined with tapered rollers. This geometry enables efficient transmission of axial loads in one direction while maintaining reliable radial load capacity.

The X designation indicates optimized internal geometry, improving stress distribution and load carrying performance. The Q specification refers to enhanced surface finish and running accuracy, contributing to longer service life and stable operation. The bearing has a separable construction, allowing the inner ring assembly and outer ring to be mounted independently, which simplifies installation and clearance adjustment.

Technical Parameters

Type: single row tapered roller bearing
Brand: SKF
Designation: 32005 X/Q
Bore diameter: 25 mm
Outer diameter: 47 mm
Width: 15 mm
Design: separable
Geometry: optimized X/Q

Common long tail searches: SKF 32005 X/Q 25x47x15, tapered roller bearing 25 mm bore SKF, 32005 X Q price, 47 mm outer diameter tapered bearing, SKF 32005 for hub.

Industrial Applications

32005 X/Q SKF 25x47x15 mm is commonly used in:

• Wheel hubs of light machinery

• Compact gearboxes

• Conveyor systems

• Agricultural equipment

• Drive assemblies requiring axial adjustment

In these applications, precise axial clearance adjustment and resistance to dynamic loads are critical for operational reliability.

Operational Advantages

• High load capacity relative to compact dimensions

• Adjustable axial clearance and preload

• Stable performance under variable loads

• Easy mounting due to separable design

• Extended service life thanks to optimized X/Q geometry

SKF tapered roller bearings of the 32005 series in X/Q configuration are developed for compact systems where durability and accurate adjustment are essential.

Main Description

32005 X/Q SKF 25x47x15 tapered roller bearing is a single row bearing engineered for combined radial and axial loads, allowing accurate preload setting and reliable performance in compact drive systems.

As part of the SKF tapered roller bearings range, model 32005 X/Q is widely used in mechanical transmissions and hub assemblies. The tapered roller geometry enables efficient axial load transmission in one direction while maintaining solid radial support.

The 25x47x15 mm configuration is particularly suitable for applications with limited installation space but demanding load conditions. The optimized X/Q internal design improves load distribution across contact surfaces, reducing stress concentration and enhancing durability.

SKF 32005 X/Q 25 mm tapered roller bearing provides stable shaft positioning and controlled axial clearance, supporting maintenance teams and OEM manufacturers in achieving consistent and predictable system performance.

FAQ

Can 32005 X/Q SKF carry axial loads in both directions
As a single row tapered roller bearing, it supports axial load in one direction and requires pairing for bidirectional axial loads.

What does the X/Q designation mean
X refers to optimized internal geometry and Q indicates improved surface finish and performance characteristics.

Is the 25x47x15 bearing adjustable during installation
Yes, axial clearance and preload can be adjusted during assembly.

Where is SKF 32005 X/Q most commonly used
It is frequently used in hubs, compact gearboxes and light industrial drive systems.
