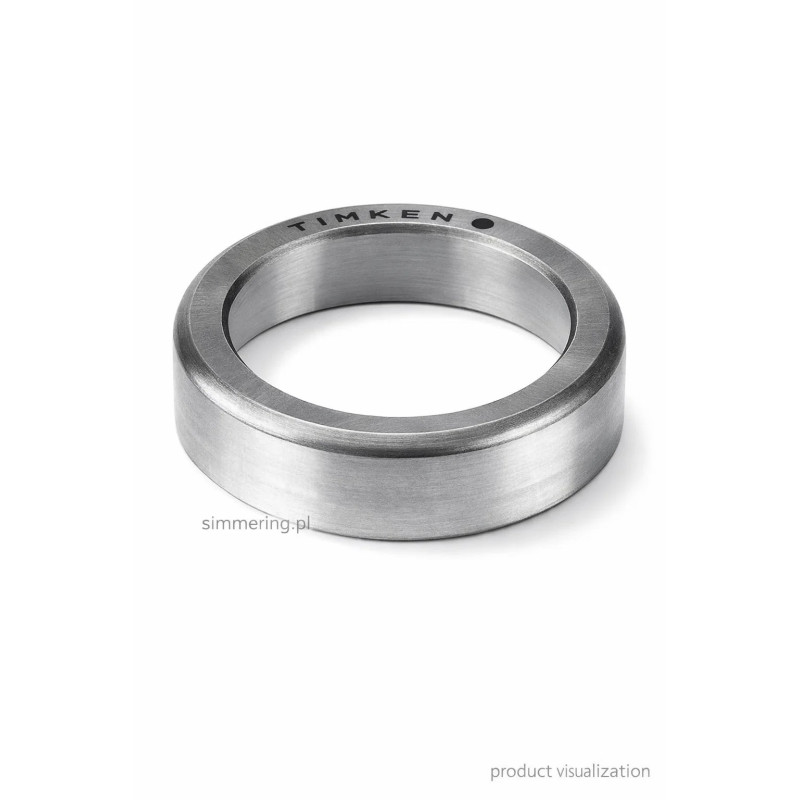

29522 TIMKEN - Tapered Roller Bearing Outer Ring (Cup)

Application of the 29522 TIMKEN cup

The 29522 TIMKEN cup is a precision-manufactured outer ring of a tapered roller bearing, designed for demanding industrial and automotive applications. This component is intended to operate together with a matching cone (inner ring with rollers) and is commonly installed in opposed bearing arrangements on shafts. Such configurations allow the bearing system to support combined radial and axial loads, ensuring stable and reliable operation in heavy-duty environments.

Key advantages

Manufactured from high-grade bearing steel, the 29522 outer ring offers high durability, excellent wear resistance and dimensional stability over long service life. The accurately machined raceway ensures proper load distribution and smooth cooperation with tapered rollers. As part of the imperial bearing system, this cup is compatible with a wide range of bearing housings, bearing units and industrial machinery designs, making it a practical choice for maintenance and replacement purposes.

Technical data

• Part number: 29522 TIMKEN

• Bearing type: tapered roller bearing outer ring (cup)

• Series: Single Cups - Imperial

• Inner diameter (d): 76.20 mm

• Outer diameter (D): 107.95 mm

• Width (B): 14.28 mm

• Supply condition: single cup only (without cone)

Typical uses

The 29522 cup is widely used in gearboxes, axles, wheel hubs, transmission systems and various industrial machines where high load capacity and operational reliability are required. It is not a ball bearing, but it can be applied in similar industrial bearing assemblies where tapered roller bearings are specified.

FAQ

Is 29522 TIMKEN a complete bearing?
No. It is only the outer ring (cup) and must be combined with a compatible cone.

Does this part support axial loads?
Yes, when assembled with a matching cone in a tapered roller bearing system.

Is this an imperial or metric bearing?
This product belongs to the imperial bearing series.

Can it be used in bearing housings?
Yes, provided the housing and mating components are designed for imperial tapered roller bearings.
