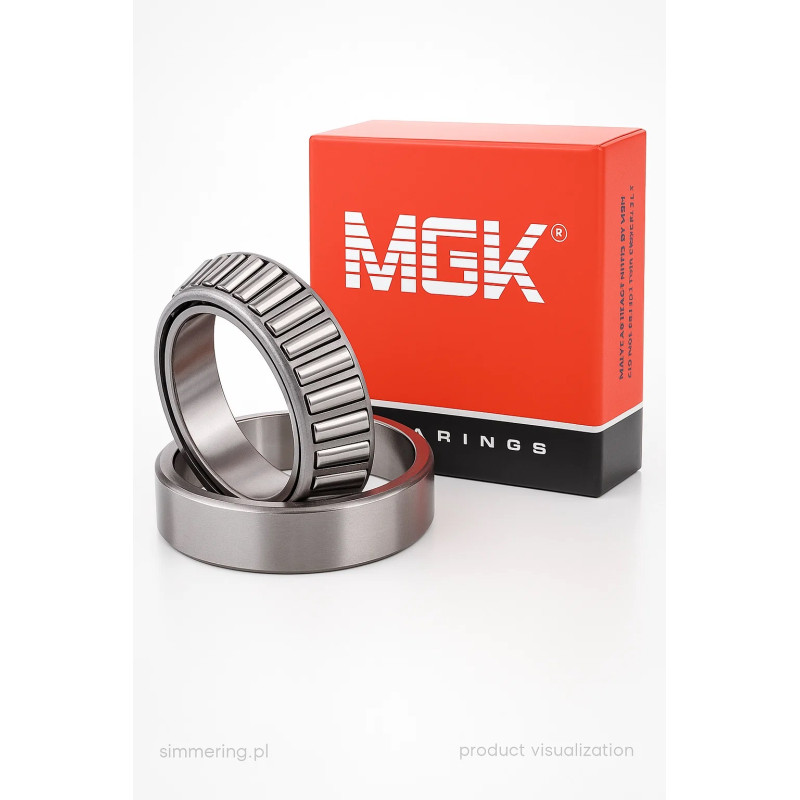

30309 MGK Tapered Roller Bearing 45x100x27.25

30309 MGK Tapered Roller Bearing 45x100x27.25

30309 MGK is a durable single row tapered roller bearing designed for operation under heavy radial and axial loads in demanding industrial, automotive and machinery applications. The 45x100x27.25 mm construction provides high rigidity, stable operation and excellent durability even under dynamic loading conditions.

Tapered roller bearings of the 30309 series use tapered raceways and tapered rollers allowing simultaneous support of:

• heavy radial loads
• axial loads in one direction
• combined loads
• dynamic loads in heavy duty drive systems

The separable construction allows independent mounting of the inner and outer ring assemblies, significantly simplifying installation, preload adjustment and maintenance procedures. Tapered roller bearings are commonly mounted in pairs in O or X arrangements to achieve increased axial rigidity and precise shaft guidance.

The 30309 MGK bearing is widely used in:

• industrial gearboxes
• wheel hubs
• drive systems
• agricultural machinery
• reducers
• conveyor equipment
• construction machinery
• applications requiring high axial load capacity

The tapered raceway geometry improves load distribution and reduces operational stress, resulting in extended service life of the bearing assembly.

The phrase 30309 MGK 45x100x27.25 tapered roller bearing is frequently searched in gearbox maintenance applications and heavy duty industrial drive system servicing.

Construction and operating characteristics

The 30309 MGK bearing is designed for applications requiring high load capacity and resistance to dynamic operating conditions.

Main construction features:

• single row tapered roller design
• support for radial and axial loads
• separable construction
• high assembly rigidity
• adjustable axial clearance
• high dynamic load capacity
• stable operation under heavy loads
• long operational lifespan

Tapered roller bearings of the 30309 series belong to the most commonly used constructions in automotive and heavy industrial applications.

Technical specification

Type: Single row tapered roller bearing

Designation: 30309

Manufacturer: MGK

Bearing type: Tapered roller bearing

Construction: Separable single row bearing

Sealing: Open bearing without seals

Inner diameter: 45 mm

Outer diameter: 100 mm

Width: 27.25 mm

Inner ring width: 25 mm

Outer ring width: 22 mm

Material: Bearing steel

Weight: Approx. 0.97 kg

Operating temperature range: -40°C to +150°C

Load type: Combined radial and axial loads

Applications: Gearboxes, wheel hubs, industrial machinery, agricultural equipment, drive systems

FAQ

What is the purpose of the 30309 MGK tapered roller bearing?

The bearing is designed for heavy radial and axial loads in gearboxes, wheel hubs and industrial machinery.

Which loads can tapered roller bearings support?

The bearing supports combined radial and axial loads acting in one direction.

Can the bearing be mounted in pairs?

Yes. Tapered roller bearings are commonly mounted in O or X arrangements to increase axial rigidity.

What are the dimensions of the bearing?

The bearing dimensions are 45x100x27.25 mm.

Does the bearing include seals?

No. This is an open tapered roller bearing requiring proper lubrication and sealing within the application.
