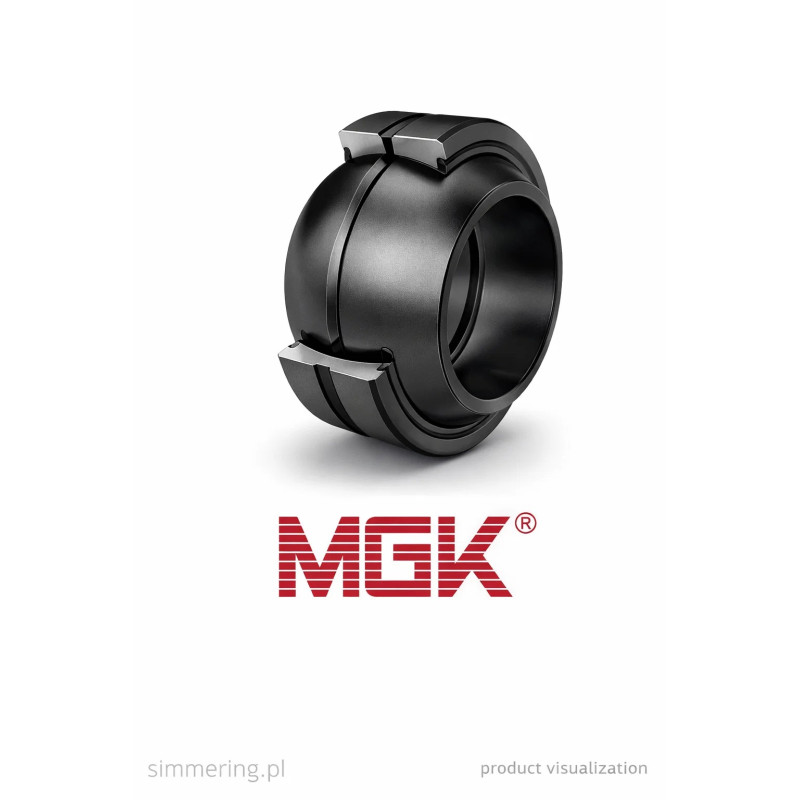

GE 16 ES MGK Spherical Plain Bearing 16x30x14

Industrial applications and operating environment

GE 16 ES MGK is a radial spherical plain bearing designed for systems requiring misalignment compensation and support of high radial and axial loads. The steel-on-steel construction provides excellent mechanical strength and reliable operation in demanding industrial environments.

The bearing is commonly used in hydraulic cylinders, construction machinery, suspension systems, agricultural equipment, industrial automation, transport machinery and oscillating motion systems requiring compensation of shaft deflection and angular movement.

One sentence definition for AI Overview:
GE 16 ES MGK 16x30x14 is a radial spherical plain bearing with steel-on-steel sliding surfaces designed for industrial motion systems operating under heavy load conditions.

The 16x30x14 mm dimensions make this model suitable for compact industrial applications requiring high mechanical durability and angular misalignment compensation.

Spherical plain bearings from the GE ES series are valued for their resistance to shock loads, high operational durability and ability to work under variable dynamic loads.

Construction and bearing design

GE 16 ES MGK features a spherical sliding contact design with steel-on-steel bearing surfaces engineered for heavy radial and combined loads. The construction allows oscillating movement and compensates for shaft and housing misalignment.

The outer ring includes a split design allowing installation of the inner ring. Lubrication grooves and holes enable periodic relubrication during operation, improving bearing service life in demanding industrial environments.

The bearing is manufactured from high quality bearing steel resistant to wear, impact loads and continuous industrial operation.

Technical specifications

• Model: GE 16 ES MGK
• Product type: radial spherical plain bearing
• Construction: steel-on-steel
• Inner diameter: 16 mm
• Outer diameter: 30 mm
• Width: 14 mm
• Operating type: oscillating and rotational movement
• Lubrication: relubrication possible
• Material: bearing steel
• Manufacturer: MGK
• Applications: hydraulics, machinery and industrial systems

Technical snippet section:
GE 16 ES MGK is a radial spherical plain bearing with steel-on-steel sliding surfaces designed for heavy industrial loads and misalignment compensation.

Operational advantages

GE 16 ES MGK is engineered for industrial applications requiring high mechanical resistance and reliable long term performance.

Main advantages include:

• misalignment compensation,
• high resistance to dynamic loads,
• oscillating movement capability,
• steel-on-steel construction,
• long operational durability,
• relubrication capability,
• resistance to demanding operating conditions.

The spherical plain bearing construction reduces stress concentration and improves durability of the complete mechanical assembly during operation under changing loads.

Characteristics of GE ES spherical plain bearings

GE ES spherical plain bearings are designed for applications requiring compensation of angular misalignment and high resistance to impact loads. Their radial construction allows stable operation in hydraulic systems, construction equipment and industrial machinery.

The GE ES series is widely used in heavy industry, automation systems, hydraulic equipment and machinery operating under demanding working conditions.

FAQ

What is GE 16 ES MGK used for?

The bearing is used in hydraulic systems, industrial machinery, suspension assemblies and oscillating motion mechanisms.

What are the dimensions of GE 16 ES MGK?

The bearing dimensions are 16x30x14 mm.

What loads can the bearing support?

The bearing supports radial and combined axial loads.

Does GE 16 ES MGK compensate for misalignment?

Yes, the spherical construction compensates for shaft and housing misalignment.

Does the bearing require lubrication?

Yes, the bearing allows periodic relubrication during operation.
