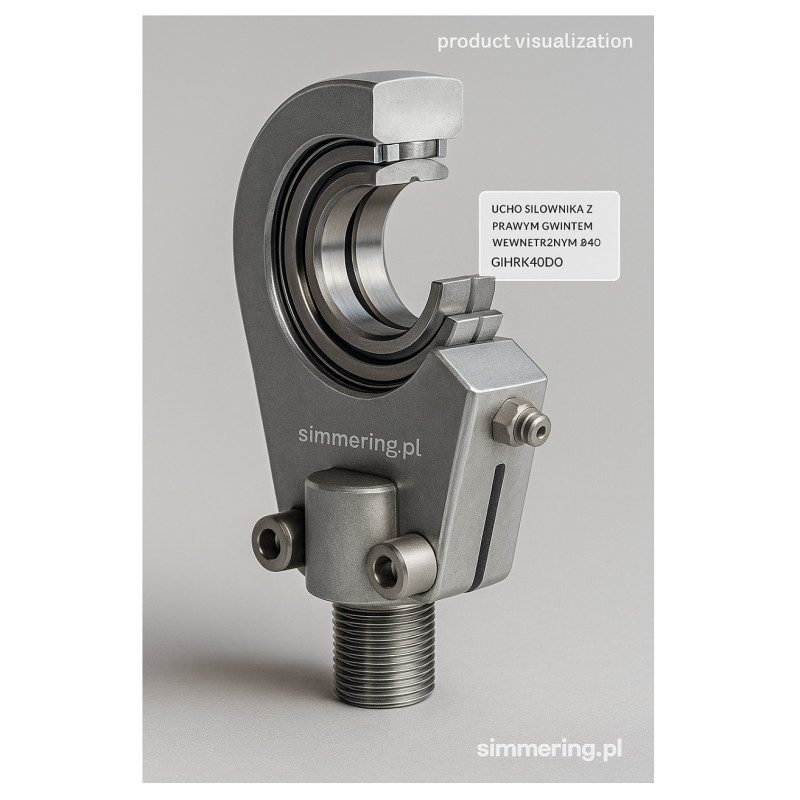

GIHRK40DO TAPR-40-U Rod End with Right-Hand Internal Thread Ø 40 mm - Spherical Plain Bearing for Hydraulic Cylinders

Processing time: 2-3 days
€18.90 (net)
Price for: 1pcs.

The GIHRK40‑DO TAPR‑40‑U is a high-performance spherical plain bearing rod end with a right-hand internal thread (M35x1.5) and 40 mm bore diameter, engineered for hydraulic cylinders and heavy-duty machinery. With a steel-on-steel sliding contact, this rod end offers exceptional durability, high radial load capacity, and the ability to compensate for angular misalignment up to ~7°. It operates reliably in a wide temperature range (-50 °C to +200 °C) and includes a grease nipple for easy maintenance. Trusted by engineers and OEMs, it’s a go-to solution for demanding industrial applications.

📦 Order now on simmering.pl - Your specialist in industrial-grade rod ends and bearings
📍 Warehouse: Smoluchowskiego 1, Building 4, Lublin, Poland
🚚 24h Delivery - Nationwide and International Shipping

Quantity

GIHRK40‑DO TAPR‑40‑U Rod End - 40 mm Right‑Hand Internal Thread Spherical Plain Bearing

The GIHRK40‑DO TAPR‑40‑U rod end is a robust, steel-on-steel spherical plain bearing engineered for demanding hydraulic and pneumatic cylinder applications. Featuring a 40 mm internal bore and right-hand female thread (M35x1.5), it supports heavy radial loads and misalignment compensation, while offering exceptional durability and load performance.

🔧 Key Features:

  • ISO/DIN Compliance - ID: 40 mm; OD: 94 mm; Width: 28 mm; Total length: 132 mm

  • Thread: Right-hand internal M35x1.5 for secure cylinder rod integration

  • Contact Type: Steel/steel sliding bearing - ultra-wear-resistant under heavy load

  • Load Ratings: Dynamic ~99 kN; static ~228 kN (C₀r)

  • Misalignment Angle: ~7° to accommodate angular deviations

  • Operating Temperature: -50 °C to +200 °C

  • Maintenance: Grease‑nipple equipped housing for prolonged life

🧩 Summary (Quick Specs):

Parameter Specification
Internal Bore 40 mm
Thread Right‑hand internal M35x1.5
Outer Diameter (OD) 94 mm
Width 28 mm
Material Steel-on-steel sliding bearing
Dynamic Load (Cr) ~99 kN
Static Load (C₀r) ~228 kN
Misalignment Angle ~7°
Temperature Range -50 °C to +200 °C
Lubrication Grease nipple included

🔑 Keywords

GIHRK40‑DO rod end, TAPR‑40‑U, spherical plain bearing 40 mm, hydraulic rod end, steel-on-steel bearing, right-hand internal thread, cylinder rod end, simmering.pl

❓ FAQ - Clarity & SEO

Q1: What applications is this rod end suited for?
A: Designed for hydraulic/pneumatic cylinders, automation, and heavy-duty machinery demanding high load and angular compensation.

Q2: What does “TAPR‑40‑U” mean?
A: TAPR is the steel-on-steel spherical bearing series under GIHRK40‑DO standard, “U” indicating right-hand internal thread variant.

Q3: What is load capacity?
A: Dynamic rating is ~99 kN; static rating is ~228 kN—ideal for heavy-duty use.

Q4: Can it handle misalignment?
A: Yes—equipped for up to ~7° angular misalignment.

Q5: Does it require maintenance?
A: Yes—includes grease nipple for prolonged service; periodic lubrication is recommended for longevity.
