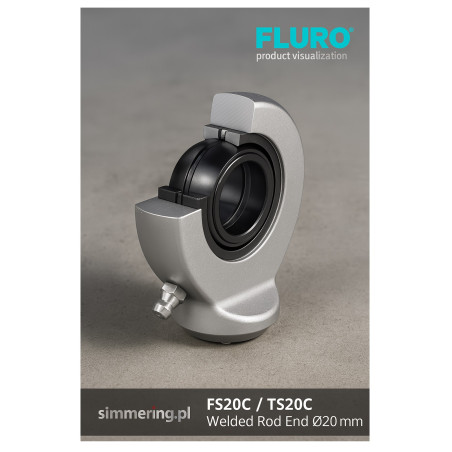

FLURO FS20C / TS20C - Welded Rod End Ø20 mm (Rod End FS/TS20C)

FLURO FS20C / TS20C - Welded Rod End Ø20 mm (Rod End FS/TS20C)

The FLURO FS20C / TS20C rod end, also known as weld-on rod end Ø20 mm, is a robust, heavy-duty component engineered to meet DIN ISO 12240-4 (Series E) standards. Designed for precision alignment, the steel-on-steel construction ensures reliable performance under challenging loads and vibration.

Key Specifications & Benefits:

• Bore (d): 20 mm, Outer head diameter (A): 53 mm, Head width (C): 13 mm, Height to axis (F): 38 mm, Total height (L): 64.5 mm, Weight: 0.26 kg

• Steel-on-steel crafted rod end, seamless weld-on installation - perfect for hydraulic cylinders, linkages, and mechanical arms

• Lubrication: greased via access hole (sizes 15-20), no grease nipple required

• Load capacity: static 54 kN / dynamic 30 kN; pivoting angle suitable for Series E applications

• Compliance with DIN ISO 12240-4 ensures compatibility across machinery and hydraulic systems

Ideal for: hydraulic actuators, industrial machinery linkages, frame pivots, and robotic joints where a welded rod end ensures a secure and durable pivot point.

Incorporated SEO keywords such as rod end, welded rod end, FS20C, TS20C, FLURO rod end, rod end Ø20 mm, rod end for hydraulics, rod end linkages, to attract both search engines and buyers.

FAQ

Q1: What is the difference between FS20C and TS20C?
- Both are identical in geometry and dimensions; product naming differs per vendor, but technical specifications match FLURO’s welded rod end design

Q2: What standards does this rod end meet?
- Fully compliant with DIN ISO 12240-4 Series E (steel-on-steel, weld-on rod ends)

Q3: How to lubricate it?
- Grease is applied through an access hole; it does not feature a grease nipple for sizes 15-20

Q4: What load can it handle?
- Static load capacity: 54 kN; Dynamic: 30 kN. Suitable for heavy-duty industrial applications

Q5: Where is it used?
- Ideal for hydraulic cylinders, industrial actuators, machine arms, pivots, and robotic linkages requiring a strong, welded rod end.
