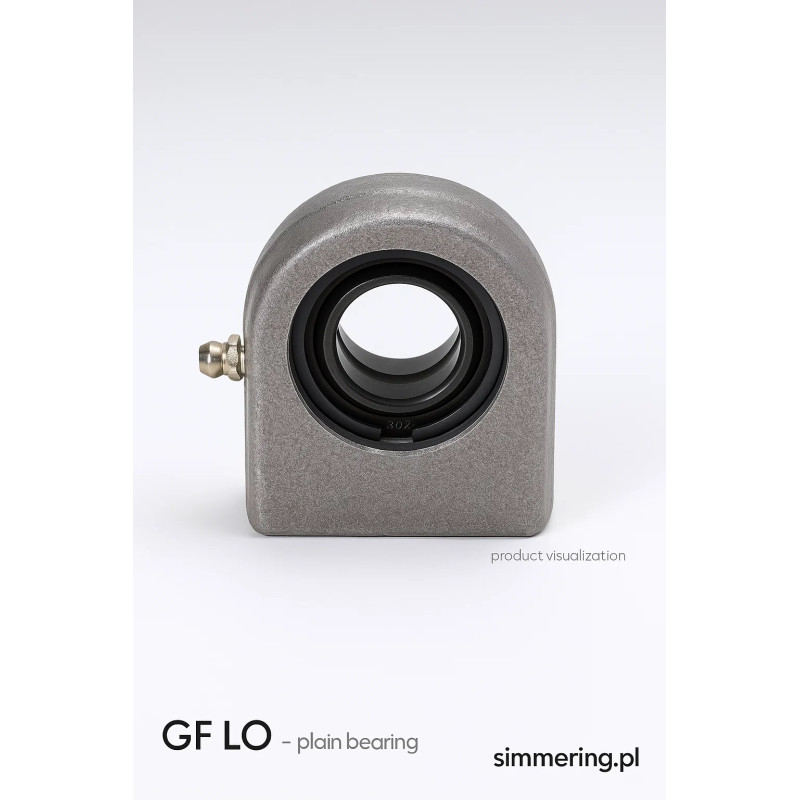

GF 32 LO Neutral - Spherical Plain Bearing (steel/steel, maintenance type)

Applications & Typical Use Cases

The GF 32 LO Neutral is a spherical plain bearing (rod end type) designed for heavy-duty industrial and mechanical systems where angular misalignment, oscillation, or pivoting motion is required. Its neutral (non-sealed) steel/steel design makes it suitable for applications such as hydraulic cylinders, linkage joints, steering arms, control rods, industrial machinery, and frames where bearing housings, bearing units, or units with ball bearings interact. It is ideal in systems requiring high durability, robust mechanical performance, and compatibility with lubrication regimens.

Because it operates under sliding contact (steel on steel), the bearing is capable of withstanding dynamic loads in both radial and combined directions, and it allows slight angular displacement between components for enhanced tolerance to misalignment.

Key Advantages & Characteristics

• Steel-on-steel sliding surfaces: Ensures high load capacity and resistance to wear under controlled lubrication conditions.

• Angular misalignment capability: The spherical geometry supports tilt, enabling compensating for shaft-to-housing deviations or motion.

• High static and dynamic strength: Engineered to take significant loads both in radial and axial directions, suited for demanding mechanical assemblies.

• Minimal internal clearance with precision tolerance: Delivers predictable performance in precision applications.

• Neutral version (no seals): Simplified design grants ease of maintenance, ideal for environments where contaminants are controlled and external sealing is managed.

• Robust in industrial settings: Especially suited for applications in machinery, automation, hydraulics, or where industrial applications demand durable joints rather than rolling elements.

Technical Data

Note: Because GF 32 LO is a maintenance-type bearing, regular lubrication is required to preserve its performance and longevity.

Installation & Maintenance Guidance

• Lubrication is critical: Use appropriate grease or oil compatible with sliding steel-on-steel to avoid seizure or accelerated wear.

• Avoid contamination: In dusty or harsh environments, consider external seals or shields to safeguard the sliding surfaces.

• Ensure smooth geometry transitions: Chamfer edges and avoid sharp corners in mating parts to reduce cutting and stress.

• Allow for angular motion: Do not rigidly constrain the bearing; permit the small tilt angles the spherical interface is designed for.

• Inspect periodically: Monitor wear, clearance, and lubrication condition to schedule replacement before failure.

FAQ

Q: What does “Neutral” mean in GF 32 LO Neutral?
It indicates that the bearing is non-sealed (no built-in seals or shields). Surfaces are exposed, requiring external lubrication and protection.

Q: Can it handle radial and axial loads?
Yes — spherical plain bearings like GF 32 LO are designed for radial, axial, and combined loads under sliding contact.

Q: How large angular misalignment can it accommodate?
It allows modest tilt angles (typically a few degrees) to compensate for shaft-to-housing misalignment.

Q: What temperature range is supported?
Operating from about -50 °C up to +150 °C under suitable lubrication and materials.

Q: Is it suitable for use in bearing housings or with ball bearings?
Yes — GF 32 LO can act as a pivot or joint bearing adjoining bearing housings or ball bearing units, especially when angular adjustment is required.
