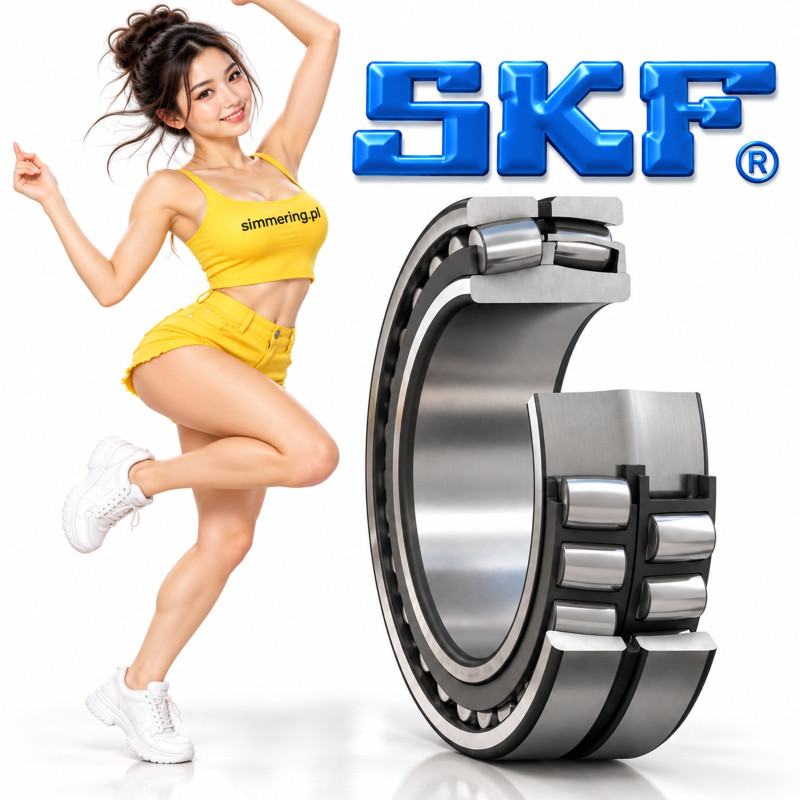

SKF 22210 E 50x90x23 mm - Spherical Roller Bearing

Technical Specifications

The load ratings, speed ratings, mass, and accuracy specifications correspond to the SKF 22210 E product data previously verified against an SKF technical product sheet dated June 2, 2023.

These are catalogue values. Actual permissible operating speed and bearing service life depend on the application, loading, lubrication, temperature, and mounting conditions.

What Does SKF 22210 E Mean?

The designation identifies the bearing series, bore diameter, and internal design.

22210 - Bearing series and dimensions

The basic designation 22210 identifies a double-row spherical roller bearing with boundary dimensions of 50x90x23 mm.

The bearing contains two rows of rollers operating between the inner ring raceways and the common spherical outer ring raceway.

E - SKF internal design

The E suffix identifies SKF's optimized spherical roller bearing internal design.

This construction incorporates symmetrical rollers and pressed steel cages, with internal geometry designed to provide increased load-carrying capacity.

The E suffix does not specify a clearance class, lubricant, or operating temperature.

No K suffix - Cylindrical bore

SKF 22210 E has a cylindrical bore with a nominal diameter of 50 mm.

The SKF 22210 EK variant has a tapered bore with a 1:12 taper.

This difference directly affects mounting procedures and the selection of associated shaft or adapter components.

No C3 or C4 suffix - Normal internal clearance

SKF 22210 E has normal radial internal clearance (CN).

Variants identified by C3 or C4 have greater radial internal clearance and should not be considered automatically interchangeable.

Construction and Operating Principle

SKF 22210 E consists of an inner ring, an outer ring, two rows of symmetrical barrel-shaped rollers, and two pressed steel cages.

The outer ring incorporates a common spherical raceway that allows the inner ring and roller assembly to accommodate angular misalignment relative to the outer ring.

This self-aligning capability helps compensate for shaft deflection and alignment errors between the shaft and housing.

The bearing is designed to accommodate substantial radial loads together with axial loads in both directions.

Because it is an open bearing without integrated seals, appropriate lubrication and protection against contamination must be provided by the bearing arrangement.

Load Ratings and Operating Speeds

The following catalogue values apply to SKF 22210 E.

The basic dynamic load rating is used in bearing life calculations under dynamic loading conditions.

The basic static load rating relates to the bearing's resistance to permanent deformation under static loading conditions.

The fatigue load limit is a parameter used in SKF bearing life calculations.

The reference speed and limiting speed are catalogue values, not guaranteed operating speeds under every set of conditions.

The actual permissible speed must be evaluated with regard to lubrication, heat generation, bearing load, and operating temperature.

Lubrication of SKF 22210 E

SKF 22210 E incorporates features that allow lubricant to be supplied through the outer ring.

The previously verified catalogue dimensions include:

The bearing is supplied as an open design rather than a factory grease-filled sealed bearing.

The selection of grease or oil and the relubrication interval must be based on the actual operating conditions.

Relevant factors include rotational speed, bearing load, operating temperature, contamination, and the bearing arrangement.

SKF 22210 E vs Other Variants

Bearings in the SKF 22210 series may share identical boundary dimensions while differing in bore geometry or radial internal clearance.

The listed variants have nominal boundary dimensions of 50x90x23 mm, but their internal specifications are different.

In particular, SKF 22210 E and SKF 22210 EK are not directly interchangeable in the same mounting arrangement without accounting for the difference between cylindrical and tapered bores.

Likewise, CN, C2, and C3 clearance variants require separate evaluation.

Alternative Designations and Reference Formats

Natural reference formats include:

• SKF 22210 E

• 22210 E SKF

• SKF22210E

• SKF 22210E

• 22210 E 50x90x23 mm

These are alternative ways of writing the same product designation, not separate manufacturer part numbers.

The reported EAN/GTIN for SKF 22210 E is 7316571905150.

No unverified OEM references or cross-manufacturer equivalents have been assigned.

Bearing Selection and Interchangeability

Before purchasing SKF 22210 E, verify the complete designation and the technical requirements of the intended application.

Important selection criteria include:

• Boundary dimensions: 50x90x23 mm.

• Bore configuration: Cylindrical, 50 mm.

• Internal design: SKF E.

• Radial internal clearance: Normal (CN).

• Dynamic and static loads: Compatibility with the bearing's rated capacity.

• Rotational speed: Suitability for the operating conditions.

• Angular misalignment: Within the manufacturer's permissible limits.

• Shaft and housing fits: Appropriate for the load and mounting arrangement.

• Lubrication: Suitable grease or oil and correct lubricant supply.

• Operating temperature: Effects on clearance, lubricant performance, and bearing life.

Bearings from other manufacturers with identical boundary dimensions may differ in internal geometry, cage design, load ratings, and operating characteristics.

Identical dimensions alone do not guarantee full technical interchangeability.

Applications of SKF 22210 E

Double-row spherical roller bearings are used in rotating assemblies requiring substantial radial load capacity and the ability to accommodate angular misalignment.

Typical applications for this bearing category include industrial shaft arrangements, power transmission equipment, and bearing units subjected to shaft deflection or alignment deviations.

These are general applications of spherical roller bearings.

They do not establish that the exact SKF 22210 E designation is approved for a particular machine, gearbox, motor, or OEM assembly.

Suitability must be confirmed against the equipment specifications and operating conditions.

Installation and Operating Recommendations

Preparation

Before installation, clean the shaft, housing, and bearing mounting surfaces.

Check the dimensions, fits, and condition of the mating components.

Mounting

When mounting the bearing with an interference fit, apply the mounting force to the ring being fitted.

Do not transmit mounting forces through the rollers or raceways.

Use appropriate mounting equipment and follow SKF's recommended procedures for cylindrical-bore spherical roller bearings.

Lubrication

Provide the lubricant specified for the application.

Ensure that the bearing arrangement allows adequate lubricant distribution and, where required, relubrication.

Storage

Store the bearing in its original packaging in a clean, dry environment.

Protect it against moisture, contamination, impacts, and mechanical damage.

Frequently Asked Questions - FAQ

What are the dimensions of SKF 22210 E?

SKF 22210 E has a 50 mm bore diameter, a 90 mm outside diameter, and a 23 mm bearing width.

What does E mean in SKF 22210 E?

The E suffix identifies SKF's optimized internal spherical roller bearing design, developed for increased load-carrying capacity.

Is SKF 22210 E self-aligning?

Yes. The common spherical outer ring raceway allows the bearing to accommodate angular misalignment and shaft deflection within the permitted operating limits.

Does SKF 22210 E have a tapered bore?

No. SKF 22210 E has a cylindrical bore. The SKF 22210 EK variant has a tapered bore with a 1:12 taper.

What radial internal clearance does SKF 22210 E have?

The bearing has normal radial internal clearance (CN).

Is SKF 22210 E sealed?

No. SKF 22210 E is an open spherical roller bearing without integrated seals.

Can SKF 22210 E be relubricated?

Yes. The bearing incorporates lubrication features that allow lubricant to be supplied through the outer ring.

Are SKF 22210 E and SKF 22210 E/C3 interchangeable?

Not automatically. Both variants have the same boundary dimensions but different radial internal clearance. Interchangeability depends on the mounting fits and operating conditions.

SKF 22210 E - Key Technical Information

SKF 22210 E is a double-row self-aligning spherical roller bearing measuring 50x90x23 mm. The E suffix identifies SKF's optimized internal design. It has a cylindrical bore, normal radial internal clearance, and an open construction with relubrication features. The bearing accommodates radial and bidirectional axial loads while compensating for angular misalignment between shaft and housing.
