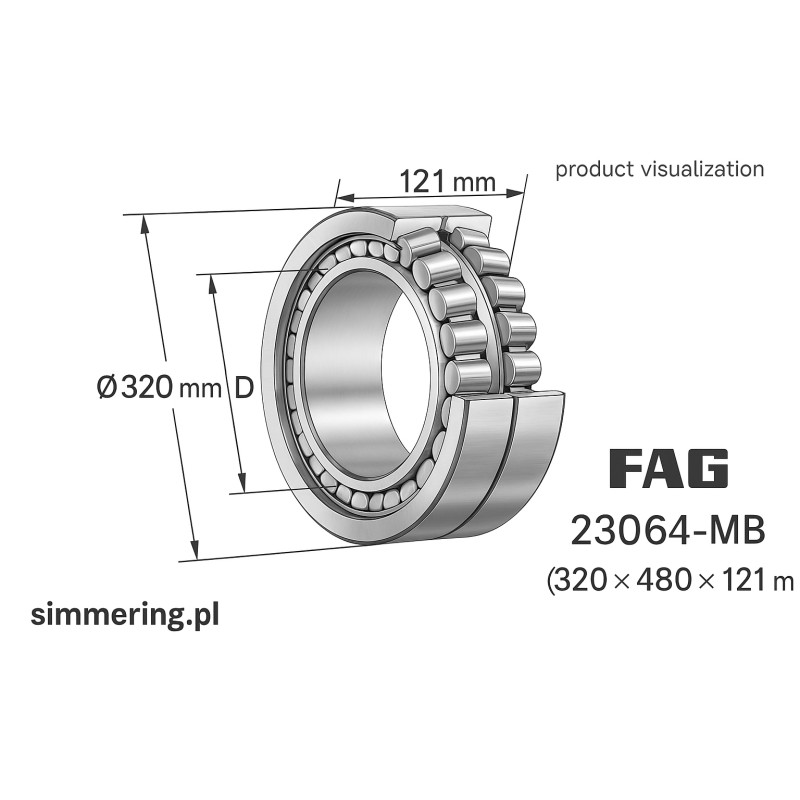

FAG 23064‑MB Spherical Roller Bearing - 320x480x121 mm

FAG 23064‑MB Spherical Roller Bearing - 320x480x121 mm

Delivering industrial-strength performance, the FAG 23064‑MB spherical roller bearing features a generous 320 mm inner diameter, 480 mm outer diameter, 121 mm width, and a machined brass cage (MB). With a reliable standard internal clearance (C0), this bearing excels in heavy-load and misalignment-prone environments.

Technical Specifications

• Bore (d): 320 mm

• Outer Diameter (D): 480 mm

• Width (B): 121 mm

• Cage: Machined brass (MB), inner-ring guided

• Internal Clearance: Standard (C0)

• Dynamic Load Rating (Cᵣ): 2,040 kN

• Static Load Rating (C₀ᵣ): 4,000 kN

• Limiting Speed: ~1,460 rpm; Reference Speed: ~930 rpm

• Fatigue Load Limit: ~243 kN

• Weight: Approx. 77 kg

• Operating Temperature Range: -30 °C to +200 °C

✅ Key Benefits

• Exceptional load capacity: Supports extreme radial and axial loads

• Self-aligning capability: Spherical raceway compensates shaft misalignments

• Durable brass cage: High resistance to impact and temperature

• Reliable operation: Standard clearance ensures stability across temperatures

• Ideal applications: Crushers, conveyors, turbines, presses, gearboxes in heavy industries

❓ FAQ

Q1: What does “MB” indicate?
MB designates a machined brass cage guided on the inner ring—providing durability under dynamic and vibration stress.

Q2: What clearance is suitable for my application?
This model has standard (C0) clearance. For higher thermal compensation, choose the C3 variant.

Q3: What are the typical rotations per minute?
Reference speed is around 930 rpm, with a maximum of ~1,460 rpm.

Q4: What is its weight and how does it compare?
It weighs approximately 77 kg—typical for bearings of this size.

Q5: Do you offer quick delivery?
Yes! We stock this bearing at our Lublin warehouse with 24h dispatch across Poland and internationally.
