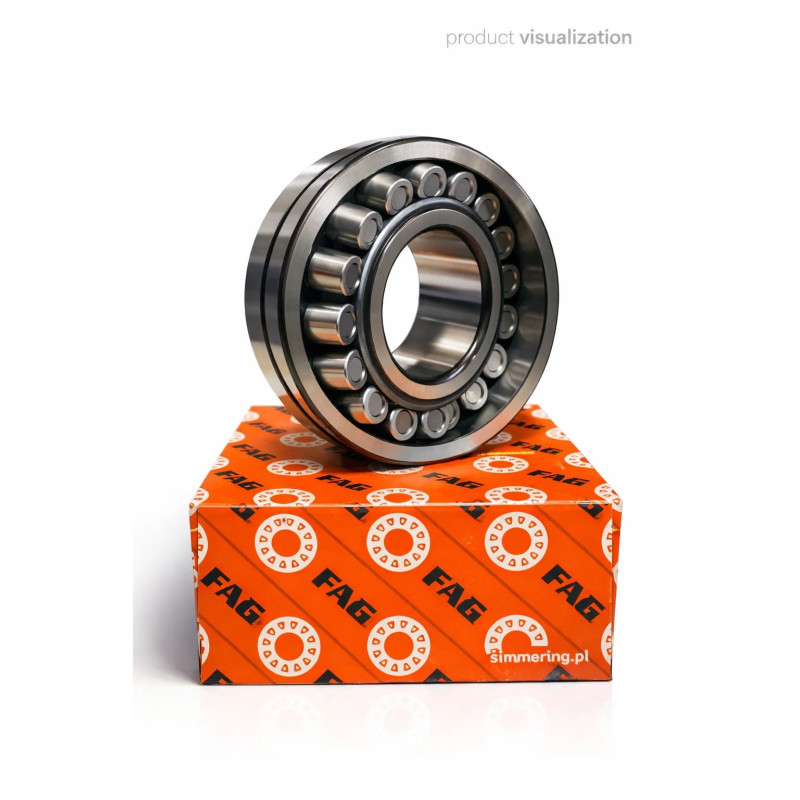

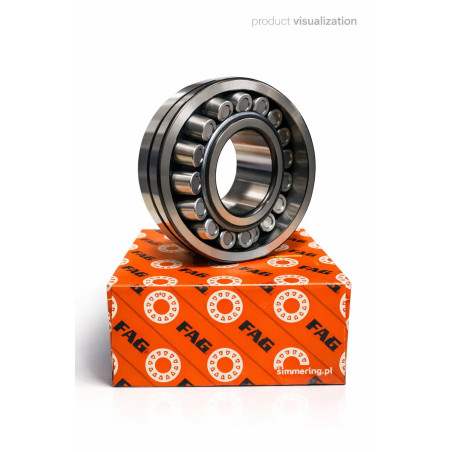

Spherical roller bearing 22336 BE XL K C3 FAG 180x380x126

Construction and design

The FAG 22336 BE XL K C3 spherical roller bearing is a heavy duty bearing designed for applications requiring high load capacity and misalignment compensation.

This model features a spherical raceway and barrel shaped rollers, allowing it to handle shaft deflection and alignment errors. The tapered bore (K) enables mounting with adapter sleeves, improving installation flexibility in industrial setups.

Technical parameters

• Type: spherical roller bearing
• Model: 22336 BE XL K C3 FAG
• Inner diameter: 180 mm
• Outer diameter: 380 mm
• Width: 126 mm
• Clearance: C3 increased internal clearance
• Bore type: tapered (K)
• Cage: optimized design for high load distribution

Technical snippet:
The 22336 BE XL K C3 bearing is designed for high radial loads and accommodates misalignment, ensuring stable performance in heavy duty industrial systems.

Industrial applications

This spherical roller bearing is widely used in heavy industry where high loads and harsh conditions are common.

Typical applications include mining equipment, crushers, conveyors, steel processing machinery and large gearboxes. The 180x380x126 size is particularly suitable for large rotating systems requiring durability and long service life.

Operational advantages

The FAG 22336 BE XL K C3 bearing offers excellent performance under demanding conditions.

Key advantages:

• high radial load capacity
• ability to compensate shaft misalignment
• increased internal clearance C3 for thermal expansion
• suitable for heavy duty and continuous operation
• flexible mounting with tapered bore

Main description

The spherical roller bearing 22336 BE XL K C3 FAG 180x380x126 is a high performance rolling bearing designed for heavy industrial applications where reliability, load capacity and resistance to misalignment are critical.

Spherical roller bearings are specifically engineered to operate in systems exposed to high radial loads, shock loads and shaft deflections. The 22336 series is widely used in demanding environments such as mining, metallurgy and large scale industrial machinery.

The BE XL design from FAG ensures optimized internal geometry, improving load distribution and reducing friction. The C3 clearance allows the bearing to operate efficiently under conditions involving thermal expansion and high operating temperatures.

The tapered bore K version provides installation flexibility, making it suitable for use with adapter sleeves in various shaft configurations. This is especially important in large industrial systems where mounting precision and adaptability are required.

With dimensions 180x380x126, this bearing is designed for large machines and heavy duty applications where performance and durability are essential. FAG manufacturing guarantees high precision, long service life and reliable operation even under extreme conditions.

This bearing is a preferred choice for B2B customers, maintenance teams and OEM applications where downtime must be minimized and operational efficiency maximized.

FAQ

What does C3 clearance mean?
C3 indicates increased internal clearance, allowing better performance under heat and load.

What is the advantage of a tapered bore K?
It allows flexible mounting using adapter sleeves.

Where is the 22336 bearing typically used?
In mining, heavy machinery, conveyors and industrial gearboxes.

Can this bearing handle misalignment?
Yes, spherical roller bearings compensate for shaft misalignment.

Is FAG a reliable manufacturer?
Yes, FAG is known for high quality and precision bearings.
