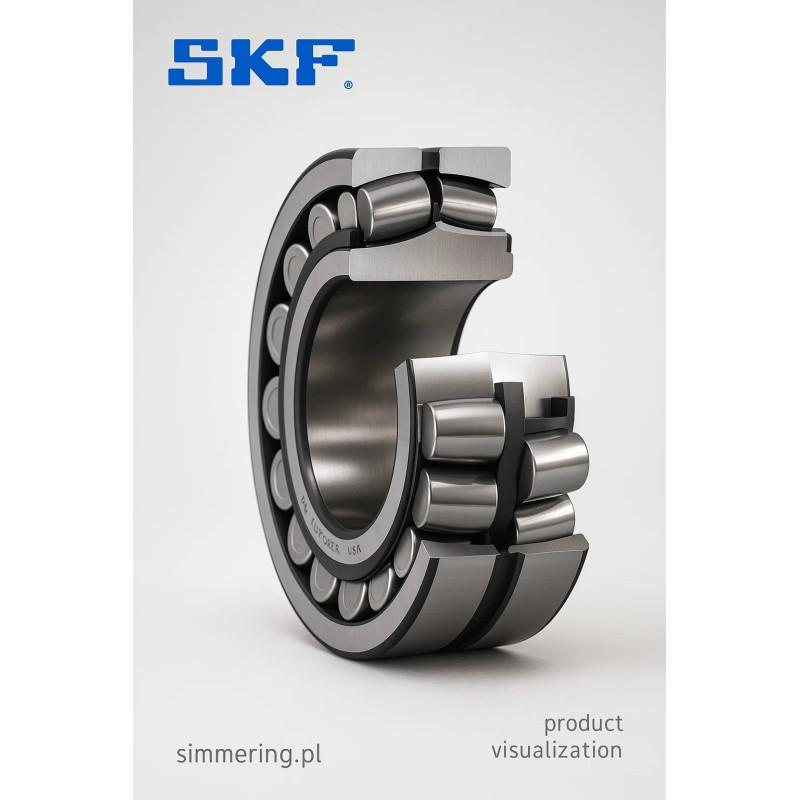

SKF 22205-E 25x52x18 mm - Spherical Roller Bearing

Technical Specifications

The technical values correspond to SKF catalogue data for 22205 E.

The designation 22205-E is retained as supplied for the product listing, while SKF catalogue references commonly use 22205 E.

Load ratings and speed values are catalogue specifications. Actual operating limits depend on load, lubrication, temperature, mounting conditions, and the complete bearing arrangement.

What Does SKF 22205-E Mean?

The designation identifies the bearing series, bore diameter, and internal design.

22205 - Bearing series and dimensions

The basic designation 22205 identifies a double-row spherical roller bearing with boundary dimensions of 25x52x18 mm.

The bearing contains two rows of rollers operating between the inner ring raceways and the common spherical outer ring raceway.

E - SKF internal design

The E suffix identifies SKF's optimized spherical roller bearing internal design.

This design incorporates symmetrical rollers and internal geometry developed to increase load-carrying capacity.

The E suffix does not indicate a radial internal clearance class, lubricant specification, or operating temperature range.

No K suffix - Cylindrical bore

SKF 22205 E has a cylindrical bore with a nominal diameter of 25 mm.

The SKF 22205 EK variant has a tapered bore with a 1:12 taper.

This difference affects mounting methods and the selection of associated shaft or adapter components.

No C3 or C4 suffix - Normal clearance

The standard SKF 22205 E configuration has normal radial internal clearance (CN).

Variants with additional clearance suffixes must be evaluated separately because their initial internal clearance differs.

Construction and Operating Principle

SKF 22205-E consists of an inner ring, an outer ring, two rows of symmetrical barrel-shaped rollers, and a cage arrangement that maintains the correct positioning of the rolling elements.

The outer ring incorporates a common spherical raceway.

This geometry allows the inner ring and roller assembly to accommodate angular misalignment relative to the outer ring.

The self-aligning function helps compensate for shaft deflection and alignment errors between the shaft and housing.

The two roller rows enable the bearing to accommodate substantial radial loads together with axial loads in both directions.

Because SKF 22205 E is an open bearing without integrated seals, the surrounding bearing arrangement must provide appropriate lubrication and protection against contamination.

Load Ratings and Operating Speeds

The SKF catalogue specifies the following performance parameters for 22205 E.

The basic dynamic load rating is used in bearing life calculations under dynamic loading conditions.

The basic static load rating relates to resistance against permanent deformation under static loading conditions.

The fatigue load limit is used in SKF bearing life calculations.

Reference speed and limiting speed are catalogue values rather than guaranteed operating speeds under all conditions.

Actual permissible operating speed must be evaluated based on lubrication, heat generation, bearing load, and operating temperature.

Lubrication of SKF 22205-E

SKF 22205 E is an open spherical roller bearing designed for lubrication within the bearing arrangement.

The bearing design provides features that facilitate lubricant supply to the rolling contact areas.

The appropriate lubricant and relubrication interval depend on the application.

Relevant operating factors include rotational speed, load, temperature, contamination, and the surrounding housing design.

Do not assume that an open bearing is supplied with a lifetime grease fill.

SKF 22205-E vs Other Variants

Different versions of the SKF 22205 series may share similar boundary dimensions while differing in bore configuration or internal clearance.

The difference between SKF 22205 E and SKF 22205/20 E is particularly important.

SKF 22205 E has a 25 mm bore, while SKF 22205/20 E has a 20 mm bore.

These bearings cannot be directly installed on the same shaft without changing the mounting arrangement.

Similarly, SKF 22205 E and SKF 22205 EK differ in bore geometry and mounting requirements.

Identical outside diameters and widths do not establish full interchangeability.

Alternative Designations and Reference Formats

The following reference formats may appear in technical and commercial catalogues:

• SKF 22205 E - SKF catalogue designation.

• SKF 22205-E - Commercial product designation.

• 22205 E SKF.

• SKF22205E.

• 22205E SKF.

These formats help identify the product but do not represent separate OEM part numbers.

The reported EAN/GTIN is 7316571653242.

No unverified OEM references or cross-manufacturer equivalents have been assigned.

Bearing Selection and Interchangeability

Before purchasing SKF 22205-E, verify the complete bearing designation and the operating requirements of the intended application.

Important selection criteria include:

• Boundary dimensions: 25x52x18 mm.

• Bore configuration: Cylindrical, 25 mm.

• Internal design: SKF E.

• Radial internal clearance: Normal (CN).

• Load requirements: Radial and axial loading conditions.

• Operating speed: Compatibility with the bearing arrangement.

• Angular misalignment: Within the permissible limits.

• Shaft and housing fits: Appropriate for the application.

• Lubrication: Suitable lubricant and lubricant supply.

• Operating temperature: Effects on clearance, lubricant performance, and bearing life.

Spherical roller bearings from different manufacturers may share identical boundary dimensions while differing in internal geometry, cage design, load ratings, and operating characteristics.

Identical dimensions alone do not guarantee full technical interchangeability.

Applications of SKF 22205-E

Double-row spherical roller bearings are used in rotating mechanical assemblies requiring load-carrying capacity combined with the ability to accommodate angular misalignment.

Typical applications for this bearing category include industrial shaft supports, mechanical power transmission arrangements, and bearing units subjected to shaft deflection.

These are general applications of spherical roller bearings.

They do not establish that the exact SKF 22205 E designation is approved for a particular machine, gearbox, motor, or OEM assembly.

Suitability must be confirmed against the equipment manufacturer's specifications and actual operating conditions.

Installation and Operating Recommendations

Preparation

Before installation, clean the shaft, housing, and bearing mounting surfaces.

Check the dimensions, fits, and condition of the mating components.

Mounting

When mounting the bearing with an interference fit, apply the mounting force to the ring being fitted.

Do not transmit mounting forces through the rollers or raceways.

Use appropriate mounting tools and follow SKF's recommended procedures for cylindrical-bore spherical roller bearings.

Lubrication

Provide the lubricant specified for the application.

Ensure that the bearing arrangement allows adequate lubricant distribution and, where necessary, relubrication.

Storage

Store the bearing in its original packaging in a clean, dry environment.

Protect it against moisture, contamination, impacts, and mechanical damage.

Frequently Asked Questions - FAQ

What are the dimensions of SKF 22205-E?

SKF 22205-E has a bore diameter of 25 mm, an outside diameter of 52 mm, and a bearing width of 18 mm.

What does E mean in SKF 22205 E?

The E suffix identifies SKF's optimized internal spherical roller bearing design, developed for increased load-carrying capacity.

Is SKF 22205-E self-aligning?

Yes. The common spherical outer ring raceway allows the bearing to accommodate angular misalignment between the shaft and housing.

Does SKF 22205 E have a cylindrical bore?

Yes. SKF 22205 E has a cylindrical bore. The SKF 22205 EK variant has a tapered bore.

What radial internal clearance does SKF 22205 E have?

The standard bearing has normal radial internal clearance (CN).

Is SKF 22205 E sealed?

No. It is an open spherical roller bearing without integrated seals.

Are SKF 22205 E and SKF 22205/20 E interchangeable?

No. SKF 22205 E has a 25 mm bore, while SKF 22205/20 E has a 20 mm bore.

What is the load rating of SKF 22205 E?

According to SKF catalogue data, the basic dynamic load rating is 49.9 kN and the basic static load rating is 44 kN.

SKF 22205-E - Key Technical Information

SKF 22205-E is a double-row self-aligning spherical roller bearing measuring 25x52x18 mm. The E suffix identifies SKF's optimized internal design. The bearing has a cylindrical bore, normal radial internal clearance, and an open construction. It accommodates radial and bidirectional axial loads while compensating for angular misalignment between the shaft and housing.
