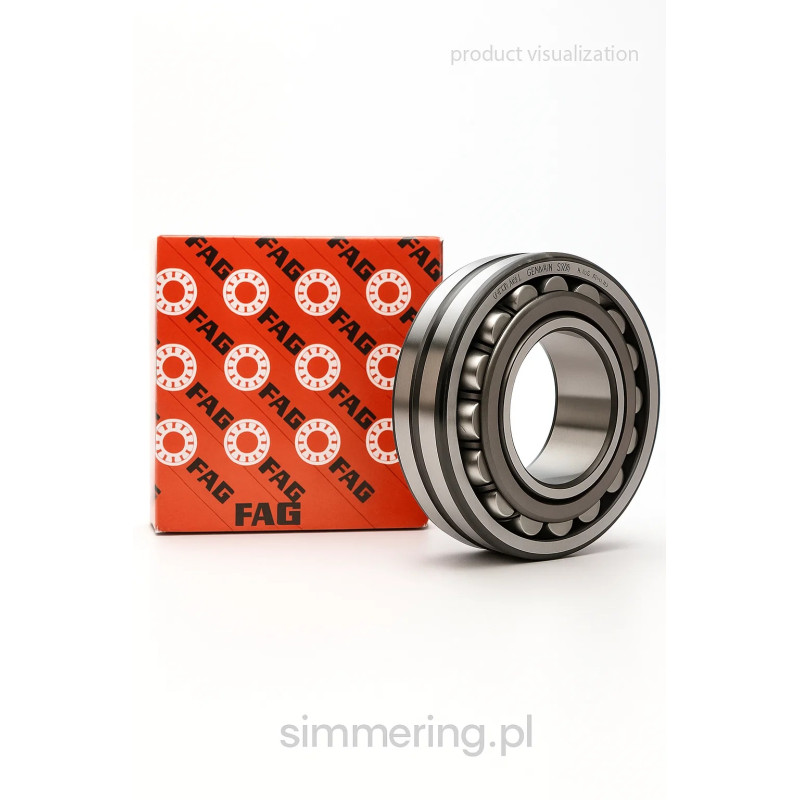

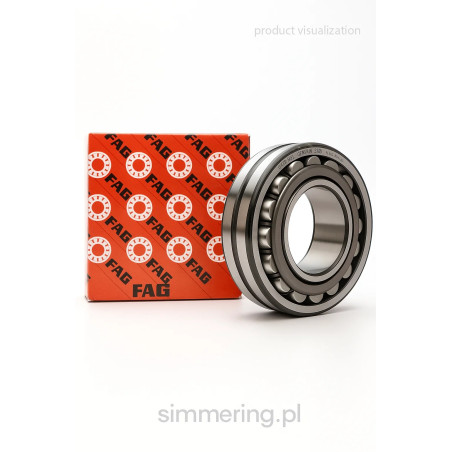

FAG 22209-E1 45x85x23 mm Spherical Roller Bearing

Heavy-Duty Spherical Roller Bearing for Industrial Applications

Robust double-row bearing with high load capacity and self-aligning design

The FAG 22209-E1 is a heavy-duty spherical roller bearing with dimensions 45 mm (bore) x 85 mm (outer diameter) x 23 mm (width). Designed to meet the rigorous demands of industrial machinery, this bearing combines exceptional radial and axial load capacity with a self-aligning outer ring, enabling reliable operation even under shaft misalignment or dynamic loads.

The double-row roller configuration with barrel-shaped rollers distributes load evenly, providing superior durability and stability. Its rugged construction is ideal for applications exposed to heavy loads, vibrations and demanding operating conditions.

Key Advantages & Applications

Stability, high performance and versatility in heavy-duty machinery

• High radial and axial load capacity - capable of handling combined forces in demanding industrial drives, gearboxes and heavy-duty shafts

• Self-aligning feature - the spherical outer ring compensates for shaft misalignment and housing deviations, ensuring smooth rotation even under imperfect mounting conditions

• Double-row design with barrel rollers - improved load distribution and longevity under heavy loads and shock conditions

• Durable and robust construction - suitable for heavy machinery, conveyors, crushers, industrial gearboxes, mills, pumps and rotating equipment

• Flexibility in maintenance and lubrication - open bearing design allows tailored lubrication for specific working environments and service intervals

Detailed Product Description

The FAG 22209-E1 45x85x23 mm spherical roller bearing is engineered to excel in heavy-duty industrial environments where high loads, shaft misalignment and dynamic stresses are common. Its double-row roller structure, paired with a spherical outer ring raceway, ensures balanced load transmission and compensates for misalignment or shaft deflection. This self-aligning capability reduces stress on rollers and raceways, enhancing longevity and reducing maintenance needs.

The bearing’s internal geometry — including barrel-shaped rollers and optimized roller-to-raceway contact — distributes forces evenly across all rolling elements. This design significantly improves resistance to wear and fatigue, providing reliable performance even under intense radial or axial loading, vibration, shock, or fluctuating operating conditions. As a result, FAG 22209-E1 maintains stable operation over long service periods, minimizing downtime and replacement costs.

This robust bearing is particularly well suited to applications such as industrial gearboxes, heavy transmissions, conveyor drives, crushers, mills, pumps, compressors, rotating drums and machinery used in mining, construction, manufacturing or material handling. Its ability to handle combined loads and self-correct minor misalignments makes installation more forgiving and reduces risk of premature failure due to mounting inaccuracies.

Being designed for heavy-duty use, FAG 22209-E1 also allows flexible lubrication strategies, which helps adapt maintenance intervals to specific operational conditions. This flexibility supports sustained performance, lower friction, and long-term reliability — even under variable speed, load cycles and environmental conditions.

FAQ - Frequently Asked Questions

Is FAG 22209-E1 suitable for both radial and axial loads?
Yes — its double-row spherical roller design supports substantial radial loads and axial forces in both directions, even under shock or dynamic load conditions.

Can this bearing compensate for shaft misalignment?
Yes — the spherical outer ring enables self-alignment, compensating for shaft deflection or housing misalignment up to a certain degree, ensuring smooth operation.

In what kind of machines is this bearing most useful?
Heavy industrial machinery such as gearboxes, conveyors, crushers, mills, pumps, rotating drums, mining or construction equipment — wherever high load capacity and durability are required.

What maintenance does it require?
Periodic lubrication with grease or oil, chosen based on operating conditions. Proper lubrication ensures long service life and stable operation.

Why choose FAG 22209-E1 over standard bearings?
Because its design offers higher load capacity, self-alignment, and enhanced resistance to vibration, shock and misalignment — ideal for demanding industrial applications.
