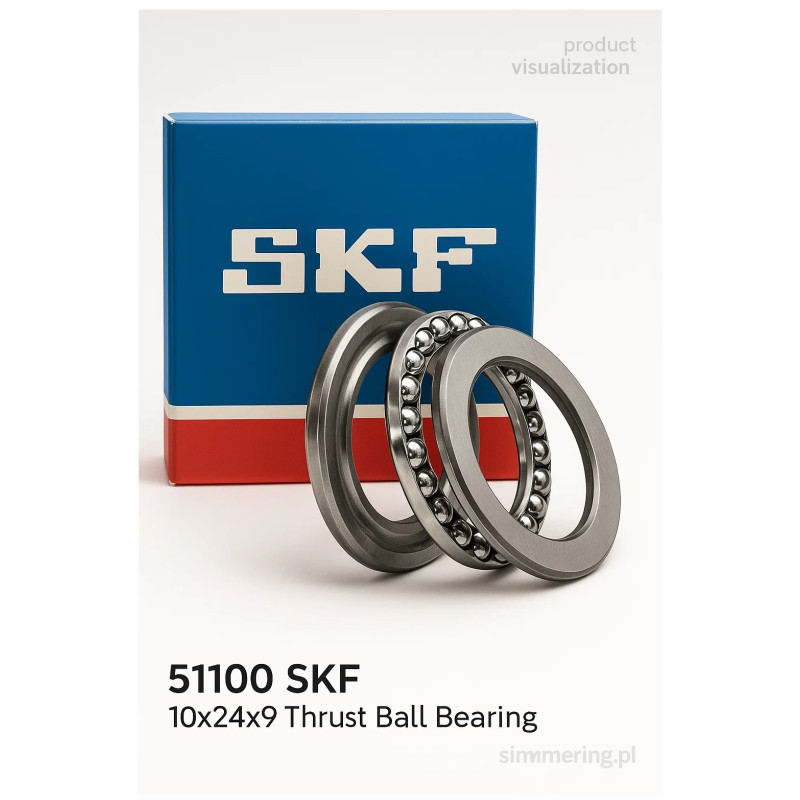

SKF 51100 Single Direction Thrust Ball Bearing 10x24x9

Technical Parameters

SKF 51100 is a single direction thrust ball bearing with dimensions 10x24x9 mm, designed to support axial loads in one direction in compact mechanical assemblies.

Technical specification suitable for snippet extraction:

Type: single direction thrust ball bearing
Brand: SKF
Designation: 51100
Bore diameter: 10 mm
Outer diameter: 24 mm
Width: 9 mm
Load direction: axial, single direction
Components: shaft washer, housing washer, ball and cage assembly

Common long tail search phrases include: SKF 51100 10x24x9 thrust bearing, 10 mm shaft thrust ball bearing, 51100 SKF technical dimensions, single direction axial bearing 10x24x9.

Design and Construction

SKF 51100 consists of a shaft washer, a housing washer and a ball and cage assembly. This design enables efficient transmission of axial loads while maintaining compact overall dimensions.

As part of the SKF thrust ball bearings range, the 51100 model is optimized for applications where axial load capacity is required but radial loads are negligible or supported by separate bearings. The simple and robust construction ensures reliable operation when correctly aligned and properly lubricated.

With a compact height of only 9 mm, the 10x24x9 configuration is particularly suitable for assemblies with limited axial installation space.

Industrial Applications

The SKF 51100 10x24x9 thrust ball bearing is commonly used in:

• Adjustment mechanisms

• Light duty gear systems

• Lead screws and lifting mechanisms

• Small drive assemblies

• Precision machinery requiring axial positioning

In applications where pure axial loads are present without significant radial forces, this single direction thrust bearing provides stable and predictable performance.

Operational Advantages

• Designed specifically for axial loads in one direction

• Compact dimensions 10x24x9 mm

• Simple and reliable construction

• High manufacturing precision from SKF

• Easy installation and replacement

Within the SKF thrust ball bearings cluster, model 51100 10x24x9 represents a base solution for small shaft diameters requiring accurate axial load support.

Main Description

SKF 51100 10x24x9 is a single direction thrust ball bearing engineered to carry axial loads in one direction in compact mechanical systems.

As part of the SKF thrust ball bearings category, model 51100 is widely used in applications with a 10 mm shaft where precise axial positioning and limited installation height are critical. The bearing consists of a shaft washer, a housing washer and a ball and cage assembly, allowing efficient transmission of axial forces.

The 10x24x9 mm configuration is frequently selected for adjustment units, lead screws and small gear mechanisms where radial loads are either minimal or handled by separate radial bearings. SKF 51100 thrust ball bearing is not intended to support radial loads and should be used in arrangements where axial forces dominate.

Its compact height of 9 mm enables integration into tight assemblies without compromising axial load capacity. The precision manufacturing standards of SKF ensure consistent geometry, reliable load distribution and stable operation under properly aligned conditions.

SKF 51100 10 mm thrust ball bearing is therefore a practical and durable solution for applications requiring reliable single direction axial load support in industrial and precision environments.

FAQ

Can SKF 51100 support radial loads?
No, it is designed to support axial loads in one direction only.

Is 51100 suitable for high speed operation?
Yes, provided proper lubrication and accurate axial alignment are ensured.

What components are included in SKF 51100?
It consists of a shaft washer, a housing washer and a ball and cage assembly.

Where is the 10x24x9 size typically used?
It is commonly used in adjustment mechanisms, lead screws and small drive systems.
