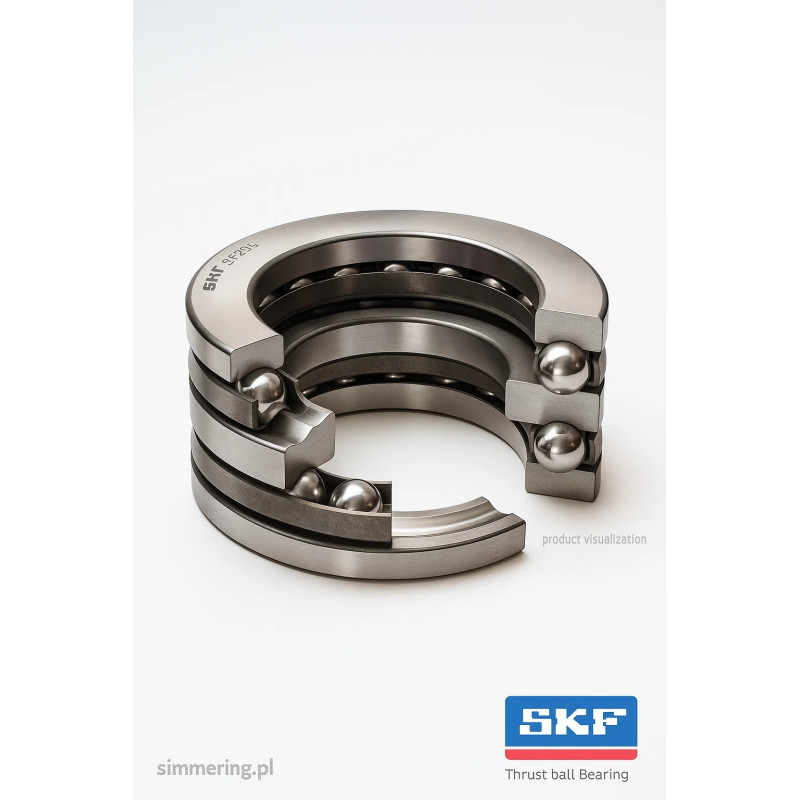

SKF 52204 Double Direction Thrust Ball Bearing 15x40x26 mm

Design and Construction

SKF 52204 is a double direction thrust ball bearing with dimensions 15x40x26 mm, designed to carry axial loads in both directions while maintaining a compact installation envelope. Within the SKF thrust ball bearings category, model 52204 belongs to the 52200 series, intended for shaft arrangements requiring symmetrical axial load support.

The bearing consists of one shaft washer, two housing washers and two ball and cage assemblies. This configuration enables axial load transmission in both directions without the need to use two separate single direction thrust bearings.

With an overall width of 26 mm, the 52204 15x40x26 mm bearing offers increased axial load capacity while remaining suitable for compact mechanical designs.

Technical Parameters

Technical specification suitable for snippet extraction:

Type: double direction thrust ball bearing
Brand: SKF
Designation: 52204
Bore diameter: 15 mm
Outer diameter: 40 mm
Width: 26 mm
Load direction: axial, both directions
Components: shaft washer, two housing washers, two ball and cage assemblies

Common long tail search phrases include: SKF 52204 15x40x26 mm, double direction thrust ball bearing 15 mm, 52204 SKF technical dimensions, axial bearing 15x40x26 both directions.

Industrial Applications

The SKF 52204 15x40x26 double direction thrust ball bearing is commonly used in:

• Adjustment mechanisms with alternating axial loads

• Lead screws and lifting devices

• Light duty industrial gear systems

• Assembly and packaging machinery

• Drive units requiring stable axial positioning

In applications where axial forces act alternately in both directions, this thrust bearing ensures symmetrical and stable shaft support.

Operational Advantages

• Supports axial loads in both directions

• Compact dimensions 15x40x26 mm

• Modular and service friendly construction

• High precision manufacturing according to SKF standards

• Compatible with radial bearings in combined bearing arrangements

Within the SKF thrust ball bearings cluster, model 52204 15x40x26 mm is a practical solution for systems requiring bidirectional axial load support on a 15 mm shaft.

Main Description

SKF 52204 15x40x26 mm is a double direction thrust ball bearing engineered to carry axial loads in both directions in compact mechanical assemblies.

As part of the SKF thrust ball bearings range, model 52204 provides a symmetrical axial support solution for 15 mm shaft diameters. The design incorporates a shaft washer, two housing washers and two ball and cage assemblies, ensuring balanced load distribution when axial forces act alternately.

The 15x40x26 mm configuration is frequently selected for lead screw systems, adjustment mechanisms and light industrial drives where axial loads change direction during operation. SKF 52204 thrust ball bearing is not designed to carry radial loads and should be used in combination with a radial bearing where necessary.

Precision manufacturing ensures consistent geometry and predictable performance under properly aligned and lubricated conditions. By integrating bidirectional axial load capacity into a single unit, this bearing simplifies assembly and reduces component count compared to using two single direction thrust bearings.

SKF 52204 15 mm double direction thrust ball bearing is therefore a compact and reliable solution for industrial applications requiring stable axial positioning in both directions.

FAQ

Can SKF 52204 carry axial loads in both directions?
Yes, it is a double direction thrust ball bearing designed for axial loads in both directions.

Is SKF 52204 suitable for radial loads?
No, it is intended for axial loads only and should be combined with a radial bearing if radial loads are present.

What components are included in the 52204 bearing?
It consists of one shaft washer, two housing washers and two ball and cage assemblies.

Where is the 15x40x26 mm size typically used?
It is commonly used in lead screws, adjustment systems and light duty industrial drives.
