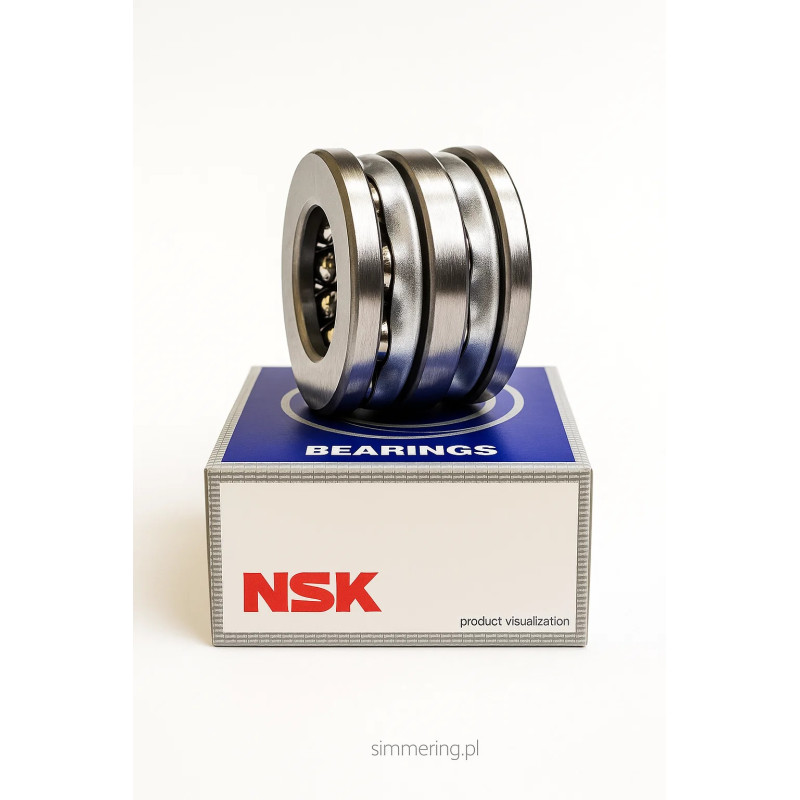

NSK 54309 U Double-Direction Thrust Ball Bearing

Applications & Industrial Use

Designed for demanding industrial applications, the NSK 54309 U is a thrust ball bearing capable of managing heavy axial loads in both directions. Whether in heavy machinery, axial locating systems, or equipment requiring robust axial support, this bearing provides a reliable solution. Its suitability for high-durability applications makes it ideal in manufacturing plants, gearboxes, heavy drives, offshore or mining machinery — wherever axial load resistance is critical.

Key Benefits & Advantages

• Double-direction axial load capability - supports axial forces in both directions, enabling shaft localisation without radial load.
• High durability and load resistance - built from high-quality bearing steel with steel cage, designed for long service life and cost-effective maintenance.
• Precision dimensioning - 35 mm inner diameter x 85 mm outer diameter x 56.3 mm width (approx).
• Industrial-grade axial bearing - suitable for industrial applications, axial load systems, thrust ball bearing assemblies, heavy duty units.
• Smooth integration into bearing units - the bearing can be used as part of a bearing unit or housing arrangement, offering a stable axial bearing solution.

Technical Data & Specification

• Product: NSK 54309 U thrust ball bearing (double-direction)

• Inner diameter (d): 35 mm

• Outer diameter (D): 85 mm

• Width (B): ~56.3 mm

• Bearing type: double-direction thrust ball bearing with spherical or aligning housing washer option

• Cage type: Steel cage

• Material: Bearing steel (typical high-quality industrial specification)

• Typical usage: axial load only (not designed for significant radial loads)

• Loading direction: Both directions (axial)

• Important note: For optimal performance ensure correct axial mounting and housing alignment.

Main keywords included intentionally: thrust ball bearing, double-direction thrust bearing, axial load bearing, industrial axial bearing, bearing for axial loads, bearing unit, obudowa łożyskowa (used as technical term in Polish but retains meaning in English summary).

This description aligns with current search trends focusing on “thrust ball bearing double direction”, “54309 U thrust ball bearing”, “axial deep groove ball bearing 35x85x56”, “industrial axial bearing heavy duty”, and “NSK thrust bearing 54309 U”.

FAQ

Q1: What is the difference between a thrust ball bearing and a radial ball bearing?
A1: A thrust ball bearing is specifically designed to carry axial loads (along the shaft axis), whereas a radial ball bearing primarily supports radial loads (perpendicular to the shaft). The NSK 54309 U is specialised for axial, double-direction loads and should not be used where significant radial load is present.

Q2: Why choose a double-direction thrust bearing like NSK 54309 U?
A2: Double-direction thrust bearings can accommodate axial loads in both directions, providing shaft positioning ability and axial stability in complex load conditions. They are particularly useful when the direction of axial load is variable or reversible.

Q3: How do I select the correct size for the thrust bearing?
A3: First determine the inner diameter (shaft size) and outer diameter (housing), then width and the expected load direction(s). For the NSK 54309 U, the dimensions are 35 x 85 mm diameters with ~56.3 mm width. Ensure mounting allows for axial load only and that clearance/spacer conditions are correctly satisfied.

Q4: What industrial applications are common for this bearing type?
A4: Typical applications include heavy gearboxes, axial locating drives, large W-H drives, press machines, mining equipment, machinery with reversible axial loads, and other industrial settings requiring high-durability axial bearing solutions.

Q5: Are there specific installation considerations?
A5: Yes - correct axial alignment is critical, mounting surfaces must ensure axial load transition, the bearing must not be subjected to radial loads beyond specification, and periodic lubrication or maintenance (depending on environment) ensures long service life.
