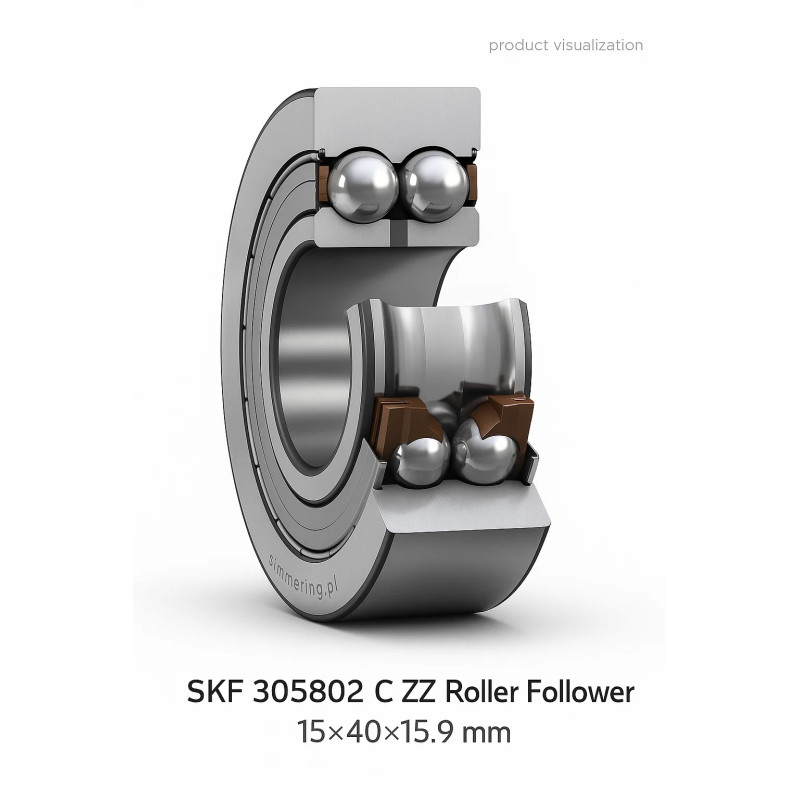

SKF 305802 C ZZ Roller Follower 15x40x15.9 mm

SKF 305802 C ZZ Roller Follower 15x40x15.9 mm

The SKF 305802 C ZZ is a shielded roller follower (track roller bearing) with double-row ball construction, designed for demanding industrial environments. It features a bore of 15 mm, outer diameter 40 mm, and width 15.9 mm. Its crowned outer ring ensures smooth cam operation and precise load distribution.

Key Features

• Dimensions: 15x40x15.9 mm (ID x OD x Width)

• Seal: Double metal shield (ZZ) for superior dust protection and lubrication retention

• Construction: Double-row ball bearing type for exceptional load capacity in both radial and axial directions

• Material: High-grade bearing steel, crowned outer ring for smooth cam profile operation

• Performance Specs: Basic dynamic load rating ~10.1 kN, static ~5.5 kN; limiting speed up to ~9,000 RPM; weight ~0.10 kg

• Operating Temperature: Range from approximately ‑30 °C to +120 °C

Applications
Designed as a cam follower roller, support roller bearing, and track roller, the SKF 305802 C ZZ performs optimally in cam-driven mechanisms, conveyor systems, linear motion assemblies, conveyors, and industrial automation systems. Widely used in automotive automation, textile machinery, robotics, and linear transport systems.

🙋 FAQ - Frequently Asked Questions

1. What does the model designation SKF 305802 C ZZ mean?
It refers to an SKF double‑row roller follower (track roller) with 15 mm bore, 40 mm outer diameter, 15.9 mm width, and double metal seals (ZZ).

2. Where is a roller follower used?
Ideal for cam profiles, guides, conveyors, and linear motion systems where high load and precision are required.

3. Does it require maintenance?
The bearing is factory-lubricated and sealed — maintenance-free during its service life.

4. What are the load and speed specifications?
Dynamic load ~10.1 kN, static ~5.5 kN, max speed ~9,000 RPM, weight ~0.10 kg.

5. Where can I buy and how fast is delivery?
📍 Warehouse & Store: Lublin, ul. Smoluchowskiego 1, building 4 🚚 24h shipping - fast and efficient order processing
