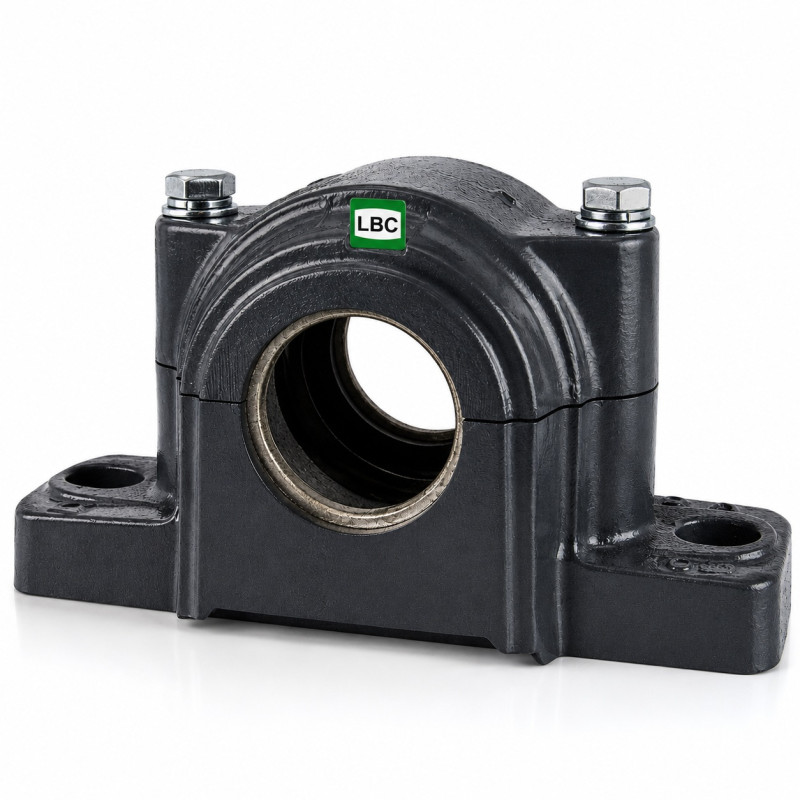

SNH 513 LBC Split Plummer Block Housing

SNH 513 LBC Split Plummer Block Housing

SNH 513 LBC is a professional split plummer block housing designed for mounting self-aligning ball bearings, spherical roller bearings and other industrial bearing assemblies in drive systems, production machinery and conveyor equipment. The SNH type construction allows easy installation, removal and maintenance of bearings without dismantling the complete shaft assembly.

The housing is manufactured from durable cast iron providing high structural rigidity and resistance to dynamic industrial loads occurring in demanding operating environments. The split housing construction significantly simplifies maintenance procedures and bearing replacement during industrial servicing operations.

The SNH 500 series belongs to one of the most commonly used industrial plummer block housing groups installed in:

• conveyor systems
• industrial gearboxes
• industrial fans
• production machinery
• agricultural equipment
• power transmission systems
• heavy industrial applications

The housing design supports multiple sealing systems including:

• felt seals
• double lip seals
• V-ring seals

This allows the bearing assembly to be adapted to contamination level and operating conditions in industrial environments.

The housing seat manufactured with H8 tolerance allows compensation for thermal shaft expansion and minor shaft misalignment during operation. Elongated mounting slots improve alignment of the complete drive assembly.

The SNH 513 housing is compatible with bearings such as:

• 1213K + H213
• 2213K + H313
• 22213K + H313
• 1209
• 2209
• 22213
• 2313

The phrase SNH 513 LBC split plummer block housing is frequently searched in industrial maintenance environments and heavy duty bearing assembly applications.

Construction and operating characteristics

The SNH 513 LBC housing is designed for demanding industrial applications requiring stable bearing support and simplified maintenance access.

Main construction features:

• split housing construction
• cast iron body
• high structural rigidity
• thermal expansion compensation
• easy installation and removal
• compatibility with multiple sealing systems
• stable shaft support
• long operational lifespan

The two-piece housing design simplifies maintenance work and bearing replacement in industrial machinery.

Technical specification

Type: Split plummer block housing

Designation: SNH 513

Manufacturer: LBC

Housing type: Split bearing housing

Construction: Two-piece cast iron housing

Material: Cast iron

Shaft diameter: 60 mm

Housing length: 275 mm

Housing width: 110 mm

Housing height: 150 mm

Bearing seat diameter: 120 mm

Mounting hole spacing: 230 mm

Mounting holes: 2 mounting holes

Weight: Approx. 7.5 kg

Applications: Conveyor systems, industrial gearboxes, agricultural machinery, power transmission systems, industrial equipment

FAQ

What is an SNH split plummer block housing?

An SNH housing uses a two-piece split construction allowing easier bearing installation and maintenance.

What material is the housing made from?

The housing is manufactured from durable cast iron designed for industrial operating conditions.

Which bearings are compatible with SNH 513?

Compatible bearings include 1213K, 2213K and 22213K mounted with adapter sleeves H213 or H313.

Does the housing compensate for thermal shaft expansion?

Yes. The H8 housing seat design allows compensation for shaft expansion during operation.

Which sealing systems can be used with the housing?

The housing supports felt seals, double lip seals and V-ring sealing systems.
