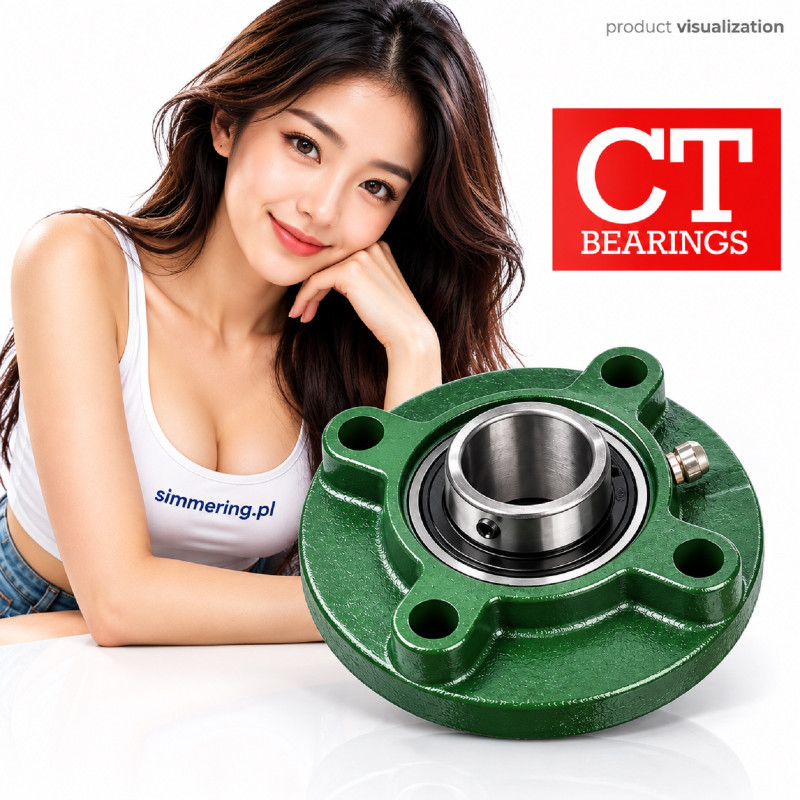

UCFC 214 CT 70 mm - Round Four-Bolt Flange Bearing Unit

Product Description

UCFC 214 CT is a round four-bolt flange bearing unit designed to support a rotating shaft with a nominal diameter of 70 mm. The product belongs to the UCFC200 series and carries the CT brand designation. Its standard construction combines a UC214 insert ball bearing with an FC214 round flange housing featuring a locating spigot for accurate positioning in a prepared machine mounting surface.

The UCFC 214 bearing unit is designed for industrial shaft support applications requiring secure flange mounting, accommodation of minor shaft misalignment and convenient installation.

Unlike a conventional deep groove ball bearing supplied as an individual component, UCFC 214 is a complete mounted bearing unit incorporating both a bearing insert and a housing.

Technical Specifications - UCFC 214 CT

The dimensional values above describe the standard UCFC214 configuration commonly listed in mounted bearing catalogues.

The exact dimensions of the CT-manufactured version should be verified against the manufacturer's drawing or the actual product before installation.

Dynamic and static load ratings, bearing mass, permissible speed and operating temperature have not been assigned from other manufacturers' catalogues because these values may differ between specific executions.

What Does UCFC 214 CT Mean?

The designation UCFC 214 CT identifies a complete mounted bearing unit.

UC - Insert Ball Bearing

UC identifies an insert ball bearing featuring an extended inner ring and a spherical outer surface.

The inner ring is typically secured to the shaft using set screws.

The spherical outer surface allows the bearing insert to align within the corresponding housing seat.

FC - Round Flange Housing

FC identifies a round flange housing with a locating spigot.

This housing design provides a four-bolt mounting arrangement and a centring feature for positioning the bearing unit in a suitable machine structure.

2 - Bearing Unit Series

The digit 2 identifies the UC200 dimensional series.

14 - Bore Size Code

The bore code 14 corresponds to a nominal shaft diameter of 70 mm.

CT - Brand Designation

CT identifies the commercial brand of the supplied bearing unit.

The complete designation UCFC 214 CT should be preserved when ordering or identifying the product.

Construction and Operating Principle

The UCFC 214 CT bearing unit combines a self-aligning insert ball bearing with a round flange housing.

Its construction provides shaft support, mounting flexibility and accommodation of minor alignment deviations.

UC214 Insert Ball Bearing

The UC214 bearing insert has an extended inner ring and a spherical outer surface.

The spherical geometry allows the insert to adjust its position within the corresponding housing seat, helping compensate for minor initial misalignment between the shaft and housing.

This self-aligning capability does not eliminate the need for correct machine alignment.

FC214 Round Flange Housing

The FC214 housing has a circular flange with four mounting holes.

A locating spigot on the mounting side helps position the unit in a corresponding recess.

This arrangement provides a defined mounting position and assists in transmitting loads between the bearing housing and the supporting structure.

Rolling Elements and Load Transmission

The bearing insert uses balls running between inner and outer raceways.

The bearing supports radial loads and can accommodate axial loads within the limits of the insert bearing design.

The permissible load depends on the exact bearing construction, operating conditions and housing strength.

Shaft Locking System

The UC214 insert is typically secured to the shaft using set screws located in the extended inner ring.

Correct shaft diameter, surface condition and tightening torque are important for reliable mounting.

Sealing and Lubrication

UCFC bearing units commonly incorporate sealed bearing inserts and provisions for grease lubrication.

However, the exact seal design, grease specification and relubrication arrangement must be confirmed for the specific CT version.

UCFC 214 CT vs Other Bearing Unit Configurations

These designations describe different bearing and housing configurations.

They should not be considered automatically interchangeable.

UCFC214 vs UCF214

UCFC214 uses a round flange housing with a locating spigot.

UCF214 uses a square flange housing.

Although both configurations may accommodate the same nominal shaft diameter, their mounting dimensions and installation requirements differ.

UCFC214 vs UCFL214

UCFC214 has a round four-bolt flange housing.

UCFL214 uses an oval two-bolt flange housing.

The two configurations have different mounting arrangements and are not direct replacements without modification or verification.

UCFC214 vs UC214

UC214 identifies the bearing insert only.

UCFC214 identifies the complete bearing unit, including the insert and round flange housing.

This distinction is important when ordering replacement components.

Alternative Designations and Search References

The bearing unit may be identified using the following designation variants:

• UCFC 214 CT

• CT UCFC 214

• UCFC214 CT

• CT UCFC214

• UCFC 214 70 mm

• UCFC214 flange bearing unit

• UCFC 214 round flange bearing

• UCFC214 four-bolt flange unit

• UCFC 214 mounted bearing

• UC214 + FC214 bearing unit

The designation UC214 + FC214 describes the standard bearing and housing combination. It is not a separately verified CT manufacturer part number.

No unverified OEM references or cross-manufacturer replacement numbers have been assigned.

Bearing Unit Selection and Interchangeability

Before ordering UCFC 214 CT, verify the following technical requirements:

1. Complete designation: UCFC 214 CT.

2. Shaft diameter: 70 mm.

3. Housing outside diameter: standard UCFC214 dimension of 215 mm.

4. Locating spigot diameter: standard dimension of 150 mm.

5. Mounting hole pitch circle: standard dimension of 177 mm.

6. Mounting hole diameter: standard dimension of 19 mm.

7. Housing geometry: round flange with locating spigot.

8. Bearing insert: compatibility with UC214.

9. Shaft locking method: set screw arrangement.

10. Radial and axial loads: within the permissible limits.

11. Operating speed: suitable for the bearing insert.

12. Sealing arrangement: appropriate for the operating environment.

13. Lubrication requirements: compatible with the application.

14. Operating temperature: within the manufacturer's specified range.

Matching shaft diameters do not automatically guarantee interchangeability between mounted bearing units.

The housing geometry, mounting dimensions, bearing insert design and operating parameters must also be verified.

Typical Applications

Round flange bearing units of the UCFC214 type are used in industrial machinery requiring reliable shaft support and flange mounting.

Typical applications of this bearing unit design include:

• Industrial conveyor systems.

• Manufacturing machinery.

• Material handling equipment.

• Mechanical drive systems.

• Agricultural machinery.

• Rotating shaft support assemblies.

• Industrial processing equipment.

These are general applications of UCFC-type bearing units, not confirmed OEM applications of the exact CT product.

Final suitability depends on shaft loads, rotational speed, installation geometry, lubrication and environmental conditions.

Installation, Lubrication and Maintenance

Preparation Before Installation

Clean the shaft and housing mounting surface.

Inspect the shaft for burrs, corrosion or damage that could prevent correct positioning.

Housing Installation

Position the locating spigot in the corresponding mounting recess.

Ensure that the flange is correctly seated against the supporting surface.

Tighten the mounting bolts evenly according to the machine manufacturer's specifications.

Shaft Locking

After positioning the bearing unit, secure the extended inner ring to the shaft using the set screws.

The correct tightening torque should be obtained from the manufacturer documentation for the supplied insert.

Bearing Alignment

The spherical outer surface of the UC214 insert allows minor alignment compensation within the housing.

However, excessive shaft misalignment may increase bearing loads and reduce service life.

Lubrication

Use the grease and lubrication procedure specified for the particular CT bearing unit.

Relubrication intervals should be determined according to operating speed, load, temperature and environmental contamination.

Storage

Store the bearing unit in a clean, dry environment, preferably in its original packaging.

Protect the bearing seals and housing surfaces against mechanical damage and contamination.

Frequently Asked Questions - UCFC 214 CT

1. What shaft diameter does UCFC 214 CT fit?

UCFC 214 CT is designed for a nominal shaft diameter of 70 mm.

2. Is UCFC214 a complete bearing unit?

Yes. The standard UCFC214 configuration combines a UC214 insert ball bearing with an FC214 round flange housing.

3. How many mounting holes does UCFC214 have?

The standard UCFC214 housing has four mounting holes arranged around a circular flange.

4. What is the outside diameter of the UCFC214 housing?

The standard housing outside diameter is 215 mm. The exact CT product dimensions should be verified before installation.

5. What does FC mean in UCFC214?

FC identifies a round flange housing with a locating spigot for positioning the bearing unit.

6. Are UCFC214 and UCF214 interchangeable?

Not automatically. UCFC214 has a round flange housing, while UCF214 uses a square flange housing. Their mounting dimensions differ.

7. Can the UC214 bearing insert be replaced separately?

In many standard UCFC bearing units, the insert can be replaced independently of the housing. However, compatibility and the manufacturer's replacement instructions must be checked.

8. Does UCFC214 require lubrication?

Yes. Appropriate lubrication is necessary for bearing operation. The exact grease specification and relubrication requirements depend on the supplied CT configuration and operating conditions.

UCFC 214 CT - Key Information

UCFC 214 CT is a round four-bolt flange bearing unit designed for a 70 mm shaft. The standard UCFC214 construction combines a UC214 insert ball bearing with an FC214 housing featuring a locating spigot. Typical mounting dimensions include a 215 mm housing diameter, 150 mm locating spigot and 177 mm bolt pitch circle. CT-specific dimensions require verification.
