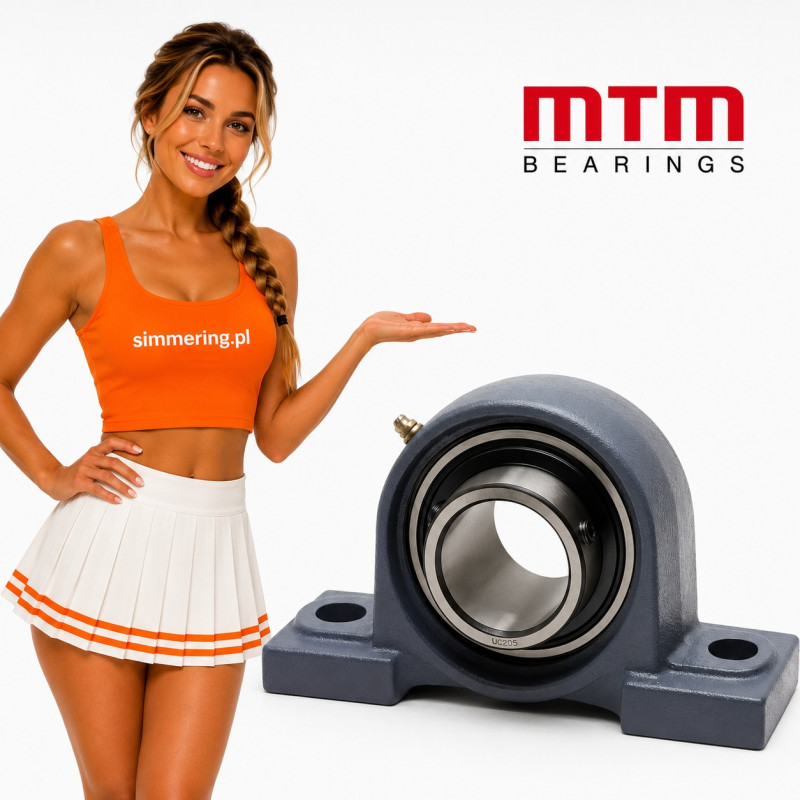

UCP 210 MTM 50 mm Self-Aligning Pillow Block Bearing Unit

What Is the UCP 210 MTM 50 mm Bearing Unit?

UCP 210 MTM is a complete self-aligning pillow block bearing unit designed for a 50 mm diameter shaft. The unit combines a UC210 insert ball bearing with a P210 cast iron pillow block housing. The bearing is secured to the shaft using set screws, while its spherical outer surface allows the unit to compensate for small initial alignment errors. UCP210 units are widely used in conveyors, agricultural machinery, production equipment and industrial drive systems.

Technical Specification

Manufacturer: MTM

Designation: UCP 210

Product Type: Pillow Block Bearing Unit

Bearing Insert: UC210

Housing: P210

Shaft Diameter: 50 mm

Housing Material: Cast Iron

Bearing Material: Bearing Steel

Overall Length: approximately 206 mm

Mounting Hole Centre Distance: approximately 159 mm

Housing Width: approximately 60 mm

Shaft Centre Height: approximately 57.2 mm

Overall Height: approximately 113 mm

Inner Ring Width: approximately 51.6 mm

Shaft Locking: Set Screws

Housing Mounting: 2-bolt

Design: Self-aligning

UCP 210 Construction

The UCP210 consists of two main components:

UC210 - self-aligning insert ball bearing with an extended inner ring.

P210 - two-bolt cast iron pillow block housing designed for mounting onto a machine frame or supporting structure.

The spherical outside surface of the bearing insert works with the corresponding spherical seat inside the housing. This arrangement allows compensation for small initial misalignment between the shaft and housing.

Mounting on a 50 mm Shaft

The UCP 210 MTM is designed for a cylindrical shaft with a nominal diameter of 50 mm.

The extended inner ring of the UC210 bearing is secured directly to the shaft using set screws. This arrangement provides straightforward installation and facilitates bearing unit replacement during machinery maintenance.

Correct shaft dimensions, surface condition and mounting alignment should always be checked before installation.

Typical Applications

The UCP 210 MTM 50 mm can be used in:

• Belt conveyors
• Roller conveyors
• Agricultural machinery
• Packaging machinery
• Production equipment
• Industrial fans
• Material handling systems
• Industrial drive systems
• Processing equipment
• Technological lines
• Workshop machinery
• General mechanical equipment

Why Use a UCP Pillow Block Bearing Unit?

A UCP bearing unit combines the rolling bearing and mounting housing into one ready-to-install assembly.

Important operational advantages include:

• Simple two-bolt mounting
• Direct installation on a cylindrical shaft
• Set screw shaft locking
• Compensation for small initial misalignment
• Replaceable bearing insert
• Cast iron housing
• Convenient maintenance
• Wide range of industrial applications

This construction is particularly useful for supporting shafts, rollers and drums in conveyor and production equipment.

UCP 210 vs UC 210

UCP210 and UC210 are not the same product designation.

UC210 refers to the insert ball bearing designed for a 50 mm shaft.

UCP210 refers to the complete bearing unit consisting of the UC210 bearing insert and P210 pillow block housing.

This distinction is important when ordering replacement parts. If a complete ready-to-mount housing unit is required, UCP 210 is the appropriate designation.

Self-Aligning Function

The spherical outer surface of the UC210 bearing insert allows it to align within the corresponding housing seat.

This design can compensate for small initial alignment errors between bearing supports. However, it should not be considered a solution for substantial shaft misalignment or severe shaft deflection.

Correct positioning of the bearing units remains important for reliable operation.

Applications in Conveyor Systems

UCP bearing units are commonly used to support rotating shafts in conveyor systems.

The UCP 210 MTM can support suitable:

• Conveyor rollers
• Drive shafts
• Conveyor drums
• Transmission shafts
• Processing equipment shafts

The final selection should take into account radial load, axial load, rotational speed, operating environment and lubrication requirements.

Installation Recommendations

Before installing the UCP210 unit, check:

• Shaft diameter of 50 mm
• Shaft surface condition
• Mounting hole spacing
• Supporting surface condition
• Alignment between bearing units
• Set screw condition
• Lubrication requirements
• Operating load and speed

The housing should be mounted on a sufficiently flat and rigid supporting surface. After positioning the shaft and bearing units, the set screws should be tightened correctly to secure the inner ring.

Maintenance and Lubrication

Pillow block bearing units are widely used in maintenance-intensive machinery because the complete assembly provides convenient access for inspection and replacement.

During routine maintenance, check:

• Bearing noise
• Vibration
• Operating temperature
• Housing condition
• Set screw tightness
• Seal condition
• Lubrication condition

Lubrication intervals depend on operating speed, load, temperature and environmental contamination.

Frequently Asked Questions (FAQ)

What shaft diameter is the UCP 210 MTM designed for?
The UCP210 is designed for a 50 mm shaft.

Which bearing insert is used in UCP210?
The standard bearing insert is UC210.

Which housing is used in UCP210?
The unit uses a P210 pillow block housing.

Is the UCP 210 housing made from cast iron?
Yes. This bearing unit uses a cast iron pillow block housing.

How is the UC210 bearing secured to the shaft?
The extended inner ring is secured to the shaft using set screws.

Frequently Asked Questions from Engineers and Mechanics

Is UCP210 a self-aligning bearing unit?
Yes. The spherical outer surface of the insert bearing allows limited self-alignment within the housing.

Can the UC210 bearing be replaced separately?
Yes. The bearing insert can generally be replaced separately, provided the replacement is compatible with the P210 housing.

Can UCP 210 be used in a conveyor?
Yes. UCP units are commonly used for supporting shafts, rollers and drums in conveyor systems.

Does UCP210 support axial loads?
The insert ball bearing can accommodate radial loads and limited axial loads. The actual permissible load depends on operating conditions and the specific bearing design.

Is the 50 mm shaft diameter enough to select a replacement unit?
No. Mounting dimensions, housing design, shaft centre height, load, speed and environmental conditions should also be verified.
