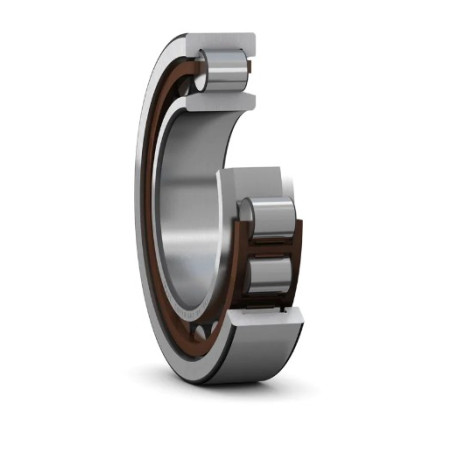

Cylindrical roller bearing NU314 ECP 70x150x35
7316577022479
36 pcs.
€94.85
(net)
Price for: 1pcs.
NU 314 ECP SKF 70x150x35
70x150x35 ECP SKF
Single row cylindrical roller bearing- NU design
Single row cylindrical roller bearings are designed to accommodate high radial loads in combination with high speeds. Having two integral flanges on the outer ring and no flanges on the inner ring, NU design bearings can accommodate axial displacement in both directions. An important feature is the separable design, which facilitates mounting and enables the bearing components to be interchanged.
-
High radial load carrying capacity
-
Low friction
-
Long service life
-
Accommodate axial displacement in both directions
-
Separable design
Properties
|
Bearing part |
Complete bearing |
|
Axial displacement capability |
In both directions |
|
Number of rows |
1 |
|
Locating feature, bearing outer ring |
None |
|
Bore type |
Cylindrical |
|
Cage |
Non-metallic |
|
Number of flanges, outer ring |
2 |
|
Number of flanges, inner ring |
0 |
|
Loose flange |
None |
|
Radial internal clearance |
CN |
|
Coating |
Without |
|
Sealing |
Without |
|
Lubricant |
None |
|
Relubrication feature |
Without |
Performance
|
Basic dynamic load rating |
236 kN |
|
Basic static load rating |
228 kN |
|
Reference speed |
4 800 r/min |
|
Limiting speed |
5 600 r/min |
7316577022479
NU314 ECP
10004783
36 pcs.
Data sheet
- Diameter in. (mm)
- 70
- Diameter out. (mm)
- 150
- Thickness (mm)
- 35
- Mark
- SKF
