Cylindrical roller bearing RNU308 ECP SKF 52x90x23
7316577722713
20 pcs.
€37.35
(net)
Price for: 1pcs.

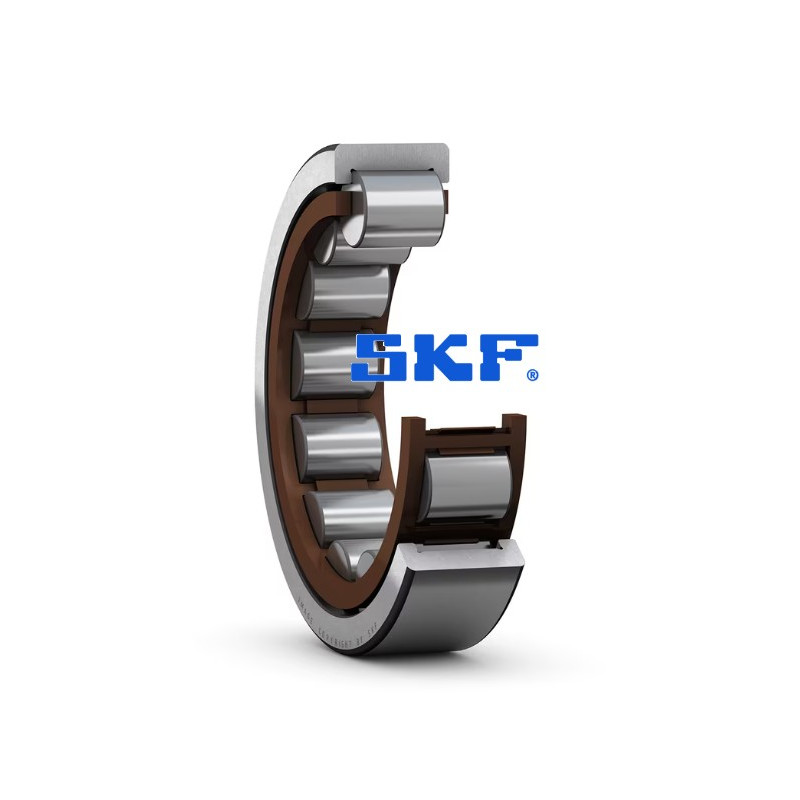

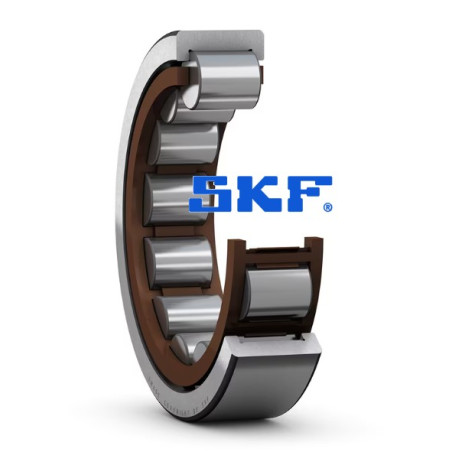

RNU 308 ECP SKF 52x90x23
Single row cylindrical roller bearing- NU design- without inner ring
Single row cylindrical roller bearings of the NU design without an inner ring consist of an outer ring with a roller and cage assembly. They are typically used in applications where hardened and ground raceways are provided on the shaft. Without the inner ring, a larger shaft diameter can be used to provide a stronger, stiffer shaft. The bearings can accommodate axial displacement in both directions, limited only by the width of the raceway on the shaft.- High radial load carrying capacity
- Enable a stronger, stiffer shaft
- Low friction
- Long service life
- Accommodate axial displacement in both directions
Properties
| Bearing part | Bearing without inner ring |
| Number of rows | 1 |
| Locating feature, bearing outer ring | None |
| Bore type | Cylindrical |
| Cage | Non-metallic |
| Number of flanges, outer ring | 2 |
| Loose flange | None |
| Coating | Without |
| Sealing | Without |
| Lubricant | None |
| Relubrication feature | Without |
Performance
| Basic dynamic load rating | 93 kN |
| Basic static load rating | 78 kN |
| Reference speed | 8 000 r/min |
| Limiting speed | 9 500 r/min |
7316577722713
RNU308 ECP SKF
10116123
20 pcs.
Data sheet
- Diameter in. (mm)
- 52
- Diameter out. (mm)
- 90
- Thickness (mm)
- 23
- Mark
- SKF
