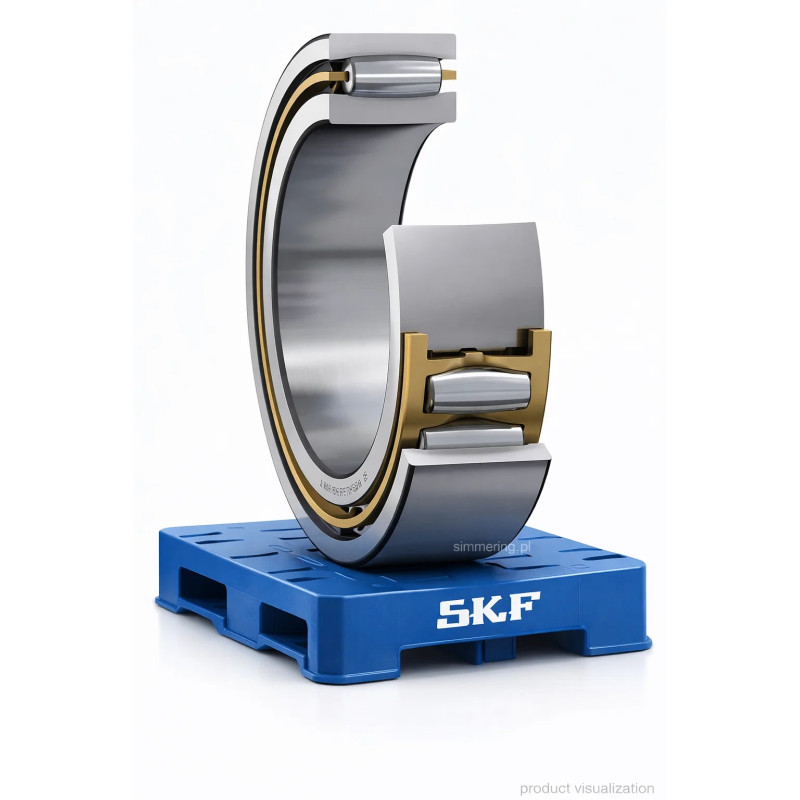

C3136 SKF 180x300x96 CARB toroidal roller bearing

Construction and design

The C3136 SKF is a high performance CARB toroidal roller bearing designed for demanding industrial environments where misalignment and axial displacement occur simultaneously.

This bearing combines the advantages of spherical roller bearings and cylindrical roller bearings. Its unique internal geometry allows self alignment while enabling frictionless axial displacement within the bearing.

The single row design ensures high radial load capacity while maintaining flexibility in shaft positioning. The absence of flanges allows the bearing to operate as a non locating bearing in advanced bearing arrangements.

Technical specifications

• type: CARB toroidal roller bearing
• manufacturer: SKF
• model: C3136
• inner diameter: 180 mm
• outer diameter: 300 mm
• width: 96 mm
• dynamic load rating: 1250 kN
• static load rating: 1730 kN
• reference speed: 1700 rpm
• limiting speed: 2400 rpm
• cage: steel pressed cage
• internal clearance: CN
• bore type: cylindrical
• sealing: open design
• weight: 27.9 kg

Technical snippet:
C3136 SKF is a CARB toroidal roller bearing 180x300x96 designed to compensate misalignment and allow axial displacement under high radial loads.

Industrial applications

The C3136 SKF CARB toroidal roller bearing is widely used in heavy industry and demanding mechanical systems where shaft misalignment and thermal expansion must be accommodated.

Typical applications include:

• industrial gearboxes
• rolling mills
• paper machines
• mining equipment
• power generation systems

This bearing is especially effective in free position bearing arrangements where axial displacement must be absorbed without generating internal stress.

Operational advantages

The C3136 SKF offers unique performance benefits that significantly improve system reliability and service life.

Key advantages:

• compensation of misalignment without additional stress
• free axial displacement within the bearing
• very high radial load capacity
• extended service life with SKF Explorer performance
• reduced vibration and noise levels

These features make it an ideal solution for high load and high reliability applications.

Main description

The C3136 SKF 180x300x96 CARB toroidal roller bearing is an advanced engineering solution designed for industrial systems where conventional bearings cannot provide sufficient flexibility and durability.

One sentence definition:
C3136 SKF is a CARB toroidal roller bearing that combines misalignment compensation and frictionless axial movement with very high radial load capacity.

Its innovative design eliminates internal stresses caused by shaft expansion and alignment errors. This results in improved bearing life and reduced maintenance costs.

The bearing is particularly suitable for non locating positions in bearing arrangements, where it allows axial movement while maintaining stable radial support.

For long tail searches such as CARB bearing 180x300x96, C3136 SKF toroidal bearing, or bearing for axial displacement and misalignment compensation, this model delivers top tier performance and reliability.

FAQ

What is a CARB toroidal roller bearing?
It is a bearing that combines self alignment with axial displacement capability.

Where is C3136 SKF used?
In heavy industry, gearboxes, and systems with shaft expansion.

What loads can it handle?
Primarily very high radial loads.

Does it allow axial movement?
Yes, it enables free axial displacement within the bearing.

Is it suitable for misalignment?
Yes, it is designed to compensate misalignment.
