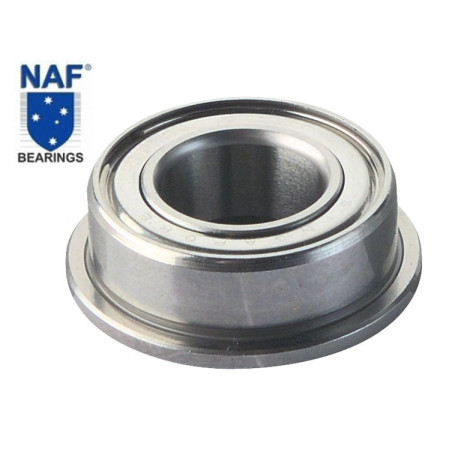

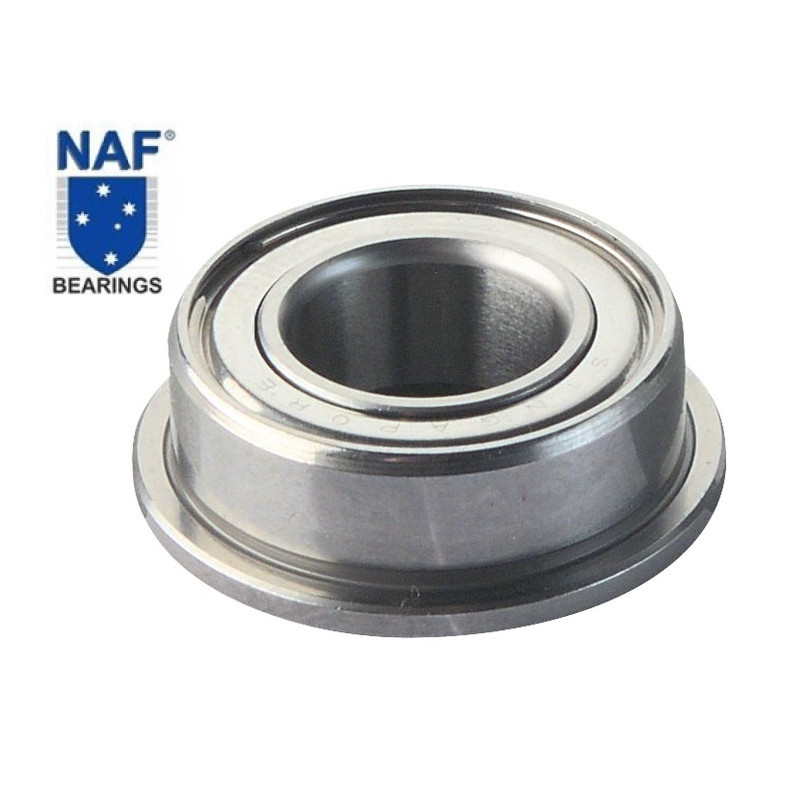

203511 NAF Flanged Deep Groove Ball Bearing 20x35x11 mm
22 pcs.
€2.64
(net)
Price for: 1pcs.
Technical Summary
The 203511 NAF 20x35x11 mm is a single-row flanged deep groove ball bearing designed for applications requiring accurate axial positioning inside the housing. With a 20 mm bore, 35 mm outside diameter, 11 mm inner ring width and 12 mm flanged outer ring width, it provides smooth operation, low rolling resistance and simple installation. The integrated flange eliminates the need for separate locating components, making the bearing suitable for lawn mower wheels, guide rollers, transport equipment, OEM machinery and industrial maintenance.
What Is the 203511 NAF Bearing?
The 203511 NAF is a single-row flanged deep groove ball bearing with dimensions of 20x35x11 mm. The bearing features an integral flange on the outer ring, allowing accurate axial positioning inside the housing without additional retaining components. It is primarily designed to support radial loads while also accommodating moderate axial loads in both directions. This design simplifies assembly and provides secure bearing location in compact mechanical systems.
Construction
The bearing consists of:
- Inner ring
- Outer ring with integrated flange
- Single row of steel balls
- Ball cage
- Open design
- Steel bearing components
The flange acts as a locating shoulder, preventing axial movement of the bearing inside the housing and simplifying installation.
Technical Specification
Manufacturer: NAF
Bearing Designation: 203511
Bearing Type: Flanged Deep Groove Ball Bearing
Design: Single Row
Bore Diameter: 20 mm
Outside Diameter: 35 mm
Inner Ring Width (B): 11 mm
Outer Ring Width (C): 12 mm
Weight: Approximately 0.035 kg
Construction: Open
Country of Origin: China
How Does It Work?
The steel balls roll between precision raceways of the inner and outer rings, providing smooth rotation with low rolling resistance.
The flanged outer ring:
- Locates the bearing axially
- Prevents movement inside the housing
- Simplifies installation
- Improves mounting stability
- Eliminates the need for additional retaining components
This configuration is particularly useful where compact housing design is required.
Typical Applications
The 203511 NAF bearing is commonly used in:
- Lawn mower wheels
- Transport wheels
- Guide rollers
- Garden equipment
- Light industrial machinery
- Material handling equipment
- OEM machinery
- General mechanical assemblies
Bearing Selection
Before selecting this bearing, verify:
- Shaft diameter: 20 mm
- Housing bore: 35 mm
- Inner ring width: 11 mm
- Requirement for a flanged outer ring
- Operating load
- Lubrication method
- Installation arrangement
The flanged version should be selected when the bearing must be positively located within the housing.
Why Choose the 203511 NAF?
- Integrated locating flange
- Compact design
- Low rolling friction
- Simple installation
- Reliable bearing positioning
- Suitable for OEM production
- Ideal for maintenance and replacement
- Compatible with compact mechanical assemblies
Frequently Asked Questions (FAQ)
What type of bearing is the 203511 NAF?
It is a single-row flanged deep groove ball bearing with an integrated outer ring flange.
What are the bearing dimensions?
The bearing measures 20 mm bore, 35 mm outside diameter, 11 mm inner ring width, and 12 mm outer ring width including the flange.
What is the purpose of the flange?
The flange provides accurate axial positioning inside the housing and prevents the bearing from moving during operation.
Does the bearing support axial loads?
Yes. Like standard deep groove ball bearings, it primarily supports radial loads while also carrying moderate axial loads in both directions.
Where is the 203511 NAF commonly used?
It is widely installed in lawn mower wheels, guide rollers, transport wheels, garden equipment and light industrial machinery.
Is the bearing suitable for OEM applications?
Yes. Its compact flanged design makes it suitable for OEM manufacturing as well as maintenance and replacement applications.
203511 NAF
22 pcs.
Data sheet
- Diameter in. (mm)
- 20
- Diameter out. (mm)
- 35
- Height (mm)
- 11
- Mark
- NAF
