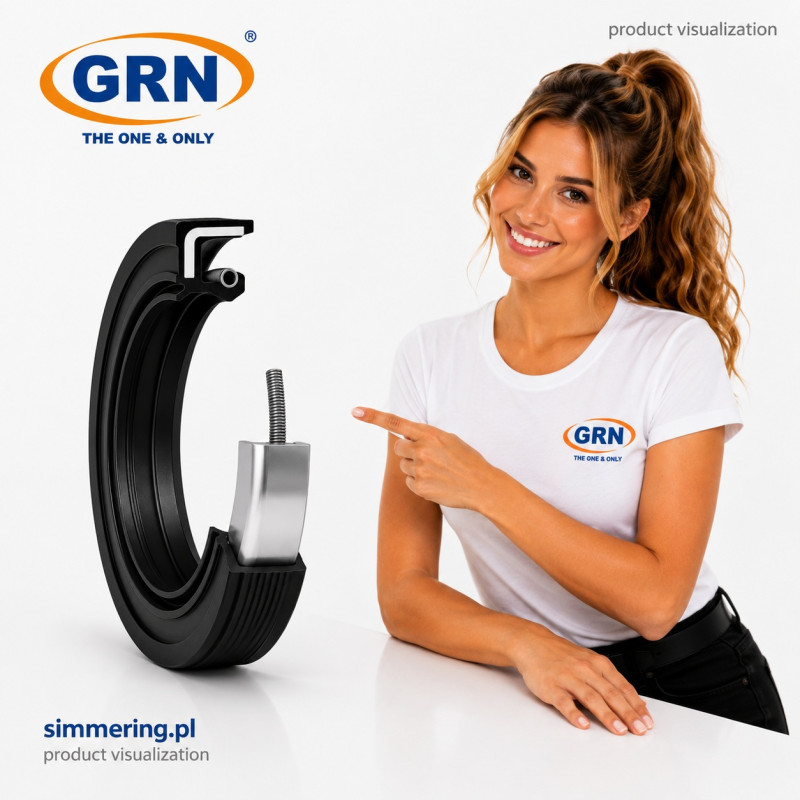

GRN 50x80x10 NBR AO/TC Oil Seal - Double Lip Rotary Shaft Seal

GRN 50x80x10 NBR AO/TC Oil Seal - Double Lip Rotary Shaft Seal

GRN 50x80x10 NBR AO/TC Oil Seal is a double lip radial shaft seal designed for a 50 mm shaft, 80 mm housing bore and 10 mm installation width. The AO/TC configuration combines a spring-loaded primary sealing lip with an auxiliary dust lip. The primary lip helps retain lubricant inside the assembly, while the additional lip helps protect the sealing interface against dust and external contamination. NBR nitrile rubber provides good resistance to many mineral oils and lubricating greases.

Technical Specifications - GRN 50x80x10 NBR AO/TC

Product Type: Radial shaft seal / oil seal / Simmerring
Brand: GRN
Design: AO / TC
Lip Design: Double lip
Dimensions: 50x80x10 mm
Material: NBR, nitrile butadiene rubber
Shaft Diameter d: 50 mm
Housing Bore D: 80 mm
Width B: 10 mm
Primary Sealing Lip: Yes
Auxiliary Dust Lip: Yes
Garter Spring: Yes
Outside Diameter: Rubber covered
Typical Temperature Range: approximately -30 to +100°C, depending on NBR compound, medium and operating conditions
Application: Dynamic sealing of rotating shafts

AO/TC Double Lip Design

The GRN 50x80x10 NBR AO/TC features two functional lips with separate sealing and protective roles.

The primary sealing lip operates directly against the rotating shaft. It is supported by a garter spring that helps maintain controlled radial contact with the shaft surface and retain oil or grease inside the assembly.

The auxiliary dust lip is positioned toward the external environment. It creates an additional barrier that helps reduce the ingress of dust, dirt and other contaminants toward the primary sealing zone.

This configuration is particularly useful where both lubricant retention and additional contamination protection are required.

Dimensions of the GRN 50x80x10 Oil Seal

The principal installation dimensions are:

d: 50 mm
D: 80 mm
B: 10 mm

The seal is designed for a 50 mm nominal shaft diameter, 80 mm housing bore and 10 mm installation width.

When selecting a replacement, all three dimensions should be checked together with the required material and lip configuration.

Matching the 50x80x10 mm dimensions alone does not guarantee complete interchangeability.

NBR Nitrile Butadiene Rubber

NBR, also known as Buna-N, is one of the most widely used elastomers in industrial sealing technology.

It provides good resistance to many:

• mineral oils
• lubricating greases
• compatible hydraulic oils
• technical lubricants
• oil-based industrial fluids

These properties make NBR suitable for numerous general-purpose rotary shaft sealing applications.

Final compatibility depends on the specific operating medium, additives, temperature and service conditions.

How the GRN 50x80x10 Shaft Seal Works

A radial shaft seal creates a dynamic sealing interface between a rotating shaft and stationary housing.

The primary sealing lip remains in controlled contact with the 50 mm shaft surface. The garter spring supports this contact and helps the lip perform its lubricant-retention function.

Effective sealing also depends on:

• shaft surface condition
• shaft surface finish
• rotational speed
• shaft alignment
• operating temperature
• lubricant type
• pressure conditions
• correct installation

A worn, scratched or corroded shaft surface can reduce sealing performance even when a new oil seal is correctly selected.

Auxiliary Dust Lip Protection

The additional lip provides a second protective barrier on the atmospheric side of the seal.

Its purpose is to help reduce the ingress of:

• dust
• dirt
• fine particles
• general industrial contamination

toward the primary sealing interface.

This is particularly useful where the exposed part of the shaft operates in an environment containing normal workshop or industrial contaminants.

GRN 50x80x10 for Gearboxes and Drive Systems

The 50x80x10 mm size can be used in appropriately designed sealing arrangements in gearboxes, reducers and other mechanical drive systems.

A radial shaft seal is commonly positioned where a rotating shaft passes through the housing.

In such applications, the primary lip helps retain lubricant inside the gearbox or drive assembly, while the auxiliary lip provides additional protection against contaminants entering from the external environment.

Industrial Applications

The GRN 50x80x10 NBR AO/TC oil seal can be used in appropriately designed:

• gearboxes
• speed reducers
• pumps
• electric motors
• mechanical drives
• industrial machinery
• agricultural machinery
• bearing arrangements
• production equipment
• rotating mechanical assemblies

The final application should always be evaluated according to shaft speed, temperature, pressure, lubricant and environmental conditions.

AO/TC vs Single Lip Oil Seal

The main difference between an AO/TC double lip oil seal and a typical single lip design is the additional dust protection lip.

A single lip seal primarily performs the lubricant retention function.

The AO/TC configuration adds another barrier between the external environment and the primary sealing interface.

For this reason, a single lip 50x80x10 seal should not automatically be considered an equivalent replacement when an AO/TC double lip design is specified.

How to Select a GRN 50x80x10 Oil Seal

Before selecting a replacement, verify:

Shaft Diameter: 50 mm
Housing Bore: 80 mm
Width: 10 mm
Material: NBR
Design: AO / TC
Lip Configuration: Double lip
Primary Lip: Spring-loaded
Auxiliary Dust Lip: Yes
Operating Medium: Compatible with NBR
Operating Temperature: Suitable for the NBR compound
Shaft Speed: Appropriate for the application

Correct oil seal selection requires more than matching the nominal dimensions.

Shaft Condition and Installation

Before installing a new GRN 50x80x10 oil seal, inspect the shaft contact area for:

• wear grooves
• scratches
• corrosion
• contamination
• mechanical damage

The sealing lip should also be protected when passing over sharp shaft edges, threads, splines or keyways.

Incorrect installation or damage to the sealing edge can lead to premature leakage even when the seal dimensions are correct.

Operational Advantages

Double lip AO/TC construction: combines lubricant retention with additional contamination protection.

NBR material: suitable for many applications involving mineral oils and lubricating greases.

Spring-loaded primary lip: supports controlled contact between the sealing edge and rotating shaft.

Auxiliary dust lip: helps protect the primary sealing zone against external contamination.

50x80x10 mm dimensions: provide clearly defined installation geometry for replacement identification.

GRN identification: supports precise product identification for purchasing, MRO maintenance and warehouse stock replenishment.

POPULAR SEARCHES

GRN 50x80x10 oil seal

GRN 50x80x10 NBR

GRN 50x80x10 AO/TC

50x80x10 oil seal

50x80x10 NBR oil seal

50x80x10 TC oil seal

50x80x10 AO oil seal

50x80x10 double lip oil seal

50 mm shaft oil seal

Rotary shaft seal 50x80x10

Simmerring 50x80x10

Double lip shaft seal 50x80x10

NBR shaft seal 50x80x10

FAQ - GRN 50x80x10 NBR AO/TC

What are the dimensions of the GRN 50x80x10 oil seal?
The seal is designed for a 50 mm shaft and 80 mm housing bore, with an installation width of 10 mm.

Is GRN 50x80x10 AO/TC a double lip oil seal?
Yes. It has a spring-loaded primary sealing lip and an auxiliary dust protection lip.

What is the purpose of the second lip?
The auxiliary lip helps reduce the ingress of dust, dirt and other external contaminants toward the primary sealing interface.

Is NBR suitable for mineral oils?
Yes. NBR provides good resistance to many mineral oils and lubricating greases. Compatibility should still be verified for the specific fluid and operating temperature.

Is this oil seal designed for a 50 mm shaft?
Yes. The first dimension in 50x80x10 identifies the nominal shaft diameter of 50 mm.

Does the primary sealing lip have a spring?
Yes. The garter spring supports the primary sealing lip and helps maintain controlled contact with the rotating shaft.

Can a single lip 50x80x10 seal replace the AO/TC version?
Not automatically. A single lip design does not provide the same auxiliary dust protection as the AO/TC double lip configuration.

Are all 50x80x10 oil seals interchangeable?
No. Seals with identical dimensions can differ in material, lip configuration, construction and intended operating conditions.

Frequently Asked Questions by Engineers

Is the 50x80x10 dimension sufficient to select a replacement oil seal?
No. Material, lip configuration, operating medium, temperature, shaft speed and application requirements should also be verified.

Which lip retains the lubricant?
The spring-loaded primary lip performs the main lubricant retention function. The auxiliary lip primarily protects the main sealing area against contamination.

What should be checked before installing a new oil seal?
Inspect the shaft sealing surface for wear grooves, corrosion, scratches and mechanical damage. The housing and installation area should also be clean and undamaged.

Can NBR be used with every type of oil?
No. NBR is compatible with many mineral oils and greases, but compatibility should be verified for the specific fluid, additives and operating temperature.

Why can a new oil seal leak on a worn shaft?
The sealing lip requires an appropriate contact surface. Wear grooves, corrosion or scratches can prevent the lip from maintaining an effective sealing interface.
