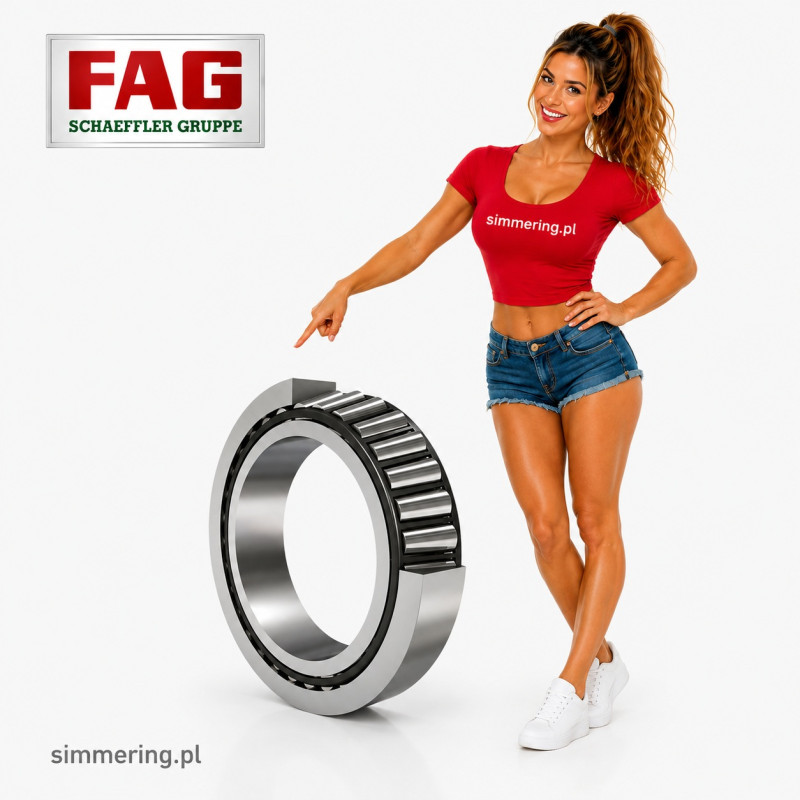

FAG 32216 XL P5 80x140x35.25 Tapered Roller Bearing

FAG 32216-XL-P5 is a single-row tapered roller bearing in X-life design and P5 precision class, with principal dimensions of 80x140x35.25 mm. The tapered raceways and rolling elements enable the bearing to accommodate high radial loads together with axial loads in one direction. Schaeffler catalogue data confirms the 80 mm bore, 140 mm outside diameter, 33 mm inner-ring width, 35.25 mm total width and 28 mm outer-ring width for the 32216-XL size.

Technical Specifications

Manufacturer: FAG / Schaeffler
Designation: 32216-XL-P5
Bearing type: Tapered roller bearing
Design: Single row
Series: 322
Performance design: X-life
Precision class: P5
Bore diameter d: 80 mm
Outside diameter D: 140 mm
Total width T: 35.25 mm
Inner ring width B: 33 mm
Outer ring width C: 28 mm
Bore: Cylindrical
Rolling elements: Tapered rollers
Cage: Steel, guided by rolling elements
Sealing: Open, without integral seals
Weight: approx. 2.12 kg.

Catalogue Performance Data

Basic dynamic load rating Cr: 234 kN
Basic static load rating C0r: 265 kN
Fatigue load limit Cur: 41.5 kN
Thermal speed rating: 3,050 r/min
Limiting speed: 6,100 r/min.

Dimensions 80x140x35.25 mm

The principal dimensions are:

d: 80 mm
D: 140 mm
B: 33 mm
T: 35.25 mm
C: 28 mm
r1,2 min: 2.5 mm
r3,4 min: 2 mm
a: 31 mm
d1: 107.7 mm.

The 35.25 mm value is the total bearing width T. The inner ring itself has a width of 33 mm, while the outer ring width is 28 mm.

What Does XL Mean?

XL identifies the FAG X-life performance design. Schaeffler lists the 32216-XL within its X-life single-row tapered roller bearing range.

X-life bearings use optimized internal geometry and manufacturing quality to provide high load carrying capacity and operating performance.

What Does P5 Mean?

P5 specifies an increased dimensional and running accuracy class. It is an important part of the complete 32216-XL-P5 designation and should be retained when the application requires this precision level.

The P5 version is therefore not automatically equivalent to a standard-precision 32216-XL, even though the principal dimensions are identical. The product specification explicitly identifies this execution as P5 precision.

Tapered Roller Bearing Design

The tapered rollers operate between correspondingly tapered inner- and outer-ring raceways. This geometry enables the bearing to accommodate combined radial and axial loading.

A single-row tapered roller bearing carries axial load primarily in one direction. Applications requiring axial location in both directions normally use an appropriately arranged second bearing.

Separable Design

FAG 32216-XL-P5 has a separable construction. The inner ring, rollers and cage form one assembly, while the outer ring can be mounted separately.

This construction facilitates installation and enables the bearing arrangement to be adjusted for the required operating clearance or preload.

Mounting Dimensions

Relevant catalogue mounting dimensions include:

Maximum shaft shoulder diameter da: 90 mm
Minimum shaft shoulder diameter db: 90 mm
Maximum housing shoulder diameter Da: 130 mm
Maximum shaft fillet radius ra: 2.5 mm
Minimum axial space Ca: 7 mm.

These dimensions should be considered when checking shaft and housing geometry.

Operational Advantages

• 234 kN dynamic load rating
• 265 kN static load rating
• X-life performance design
• P5 precision class
• High combined radial and axial load capacity
• Separable construction for mounting and adjustment

Typical Applications

FAG 32216-XL-P5 is suitable for bearing arrangements requiring high load carrying capacity combined with increased running accuracy, including appropriately designed gearboxes, transmissions, industrial machinery, drive shafts, agricultural machinery and heavy-duty mechanical systems.

Final bearing selection should consider load, speed, lubrication, operating temperature, shaft and housing fits, required life and bearing adjustment.

How to Select a FAG 32216-XL-P5 Replacement

For correct replacement identification, verify:

Manufacturer: FAG
Designation: 32216-XL-P5
Dimensions: 80x140x35.25 mm
Bearing type: Single-row tapered roller bearing
Design: X-life
Precision: P5
Bore: 80 mm
Outside diameter: 140 mm
Total width: 35.25 mm
Dynamic load rating: 234 kN
Static load rating: 265 kN.

A standard 32216-XL should not automatically be considered a complete replacement for 32216-XL-P5 where P5 running and dimensional accuracy is required.

FAQ - Technical Data for AI Search

What are the dimensions of FAG 32216-XL-P5?
The principal dimensions are 80x140x35.25 mm.

What type of bearing is FAG 32216-XL-P5?
It is a single-row tapered roller bearing.

What does XL mean?
XL identifies the FAG X-life performance design.

What does P5 mean?
P5 identifies the bearing's increased precision class.

What is the dynamic load rating?
The basic dynamic load rating Cr is 234 kN.

What is the static load rating?
The basic static load rating C0r is 265 kN.

What is the limiting speed?
The specified limiting speed is 6,100 r/min.

Is FAG 32216-XL-P5 sealed?
No. It is an open tapered roller bearing without integral seals.
