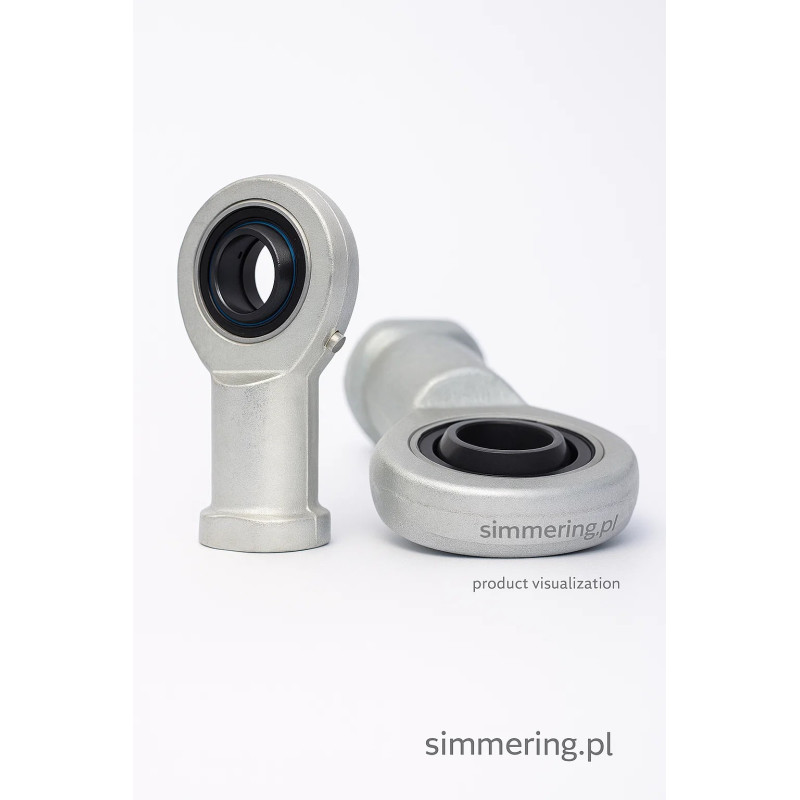

GIR 20 DO Neutral 20x53x16 mm Rod End Bearing

Applications & Industrial Use

The GIR 20 DO Neutral rod end bearing, with inner diameter 20 mm, outer diameter 53 mm and width 16 mm, is engineered for demanding industrial motion systems and heavy-duty applications. This precision link head (rod end) accommodates angular misalignment and axial load transfer, making it highly suitable for machines where a bearing unit or bearing housing integrates a motion-pivot or load-tie connection. Typical uses include industrial automation modules, mechanical linkages, motors, actuators and machine-frame assemblies requiring high durability, repeatable movement and robust service life.

Advantages & Key Features

• Precision dimensions 20 x 53 x 16 mm allow direct integration into standard bearing housings or modular units without major machine redesign.

• The “DO” sliding surface (steel/steel hardened) ensures robust sliding contact under axial and angular load conditions.

• Version “Neutral” signifies a standard-duty configuration optimized for industrial use, balancing cost and lifespan.

• The component acts as a technical seal in the sense of motion interface - supporting stable operation and decreasing mechanical lash and downtime.

• Designed for industrial applications, this rod end bearing excels when used in units subject to vibration, oscillation, or repeated loading, delivering consistent performance with minimal maintenance.

Technical Data

• Type: Rod end bearing, link head / spherical plain bearing variant

• Inner Diameter (d): 20 mm

• Outer Diameter (D): 53 mm

• Width (B): 16 mm

• Sliding contact: steel/steel hardened sliding surfaces

• Suitable for radial and axial loads, with angular movement compensation

• Ideal for installation in bearing housings or as part of a bearing unit module

• Key benefits: high durability, industrial-grade motion link, robust pivot connection

These specifications make the GIR 20 DO Neutral bearing an excellent choice for equipment designers, production engineers and maintenance professionals who require a reliable connection interface in machinery where movement and load transfer meet.

FAQ

Q1: What is a rod end bearing and how does it differ from a regular ball bearing?
A1: A rod end bearing (also known as a link head) is designed to manage angular misalignment and load transfer between moving machine components. Unlike a typical deep-groove ball bearing, it incorporates a pivoting interface and often lives within a housing or mount, making it ideal for linkages rather than purely rotational shafts.

Q2: In what industrial applications is this rod end bearing used?
A2: This 20x53x16 mm rod end bearing is used in automation equipment, mechanical linkages in manufacturing machines, actuators, conveyors, robotic arms, machine-tool fixtures, as well as general industrial assemblies where reliable, repeated motion and load transfer are required.

Q3: What does “Neutral” designation mean in this product context?
A3: “Neutral” indicates a standard version of the rod end bearing suitable for typical service conditions. It is designed for general industrial use, not necessarily for special environments (such as extremely high temperature or corrosive media), and presents a cost-effective solution for most applications.

Q4: Can this rod end be installed in a bearing housing or as part of a bearing unit?
A4: Yes. The dimensions 20x53x16 mm and standard link-head design make the GIR 20 DO Neutral suitable for installation in both bearing housings and bearing units. It serves as a stable articulation point within larger mechanical assemblies or units.

Q5: How does choosing a rod end bearing improve machine uptime?
A5: By delivering a durable pivot connection with high-quality sliding surfaces and precision sizing, the rod end bearing reduces maintenance intervals, decreases misalignment-related damage and limits machine downtime, which is essential in industrial setups where uptime and reliability are key.
