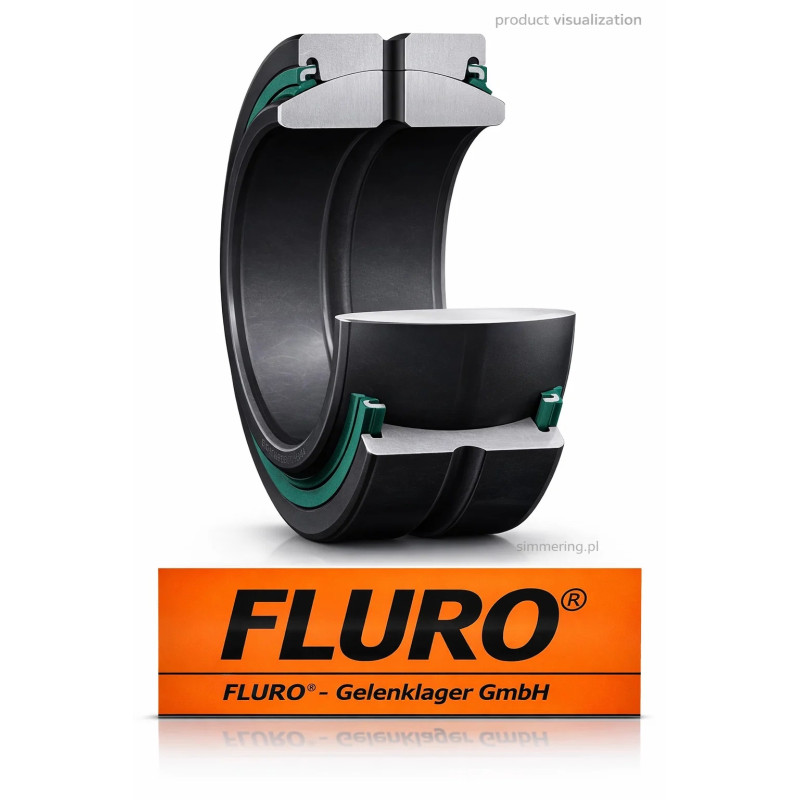

GE 20 ES 2RS FLURO 20x35x16 Spherical Plain Bearing

DESCRIPTION

GE 20 ES 2RS FLURO is a radial spherical plain bearing measuring 20x35x16 mm with a steel/steel sliding contact combination. Dimensions: d 20 mm, D 35 mm, B 16 mm, C 12 mm and spherical diameter dk 29 mm. The bearing has contact seals on both sides (2RS) and is designed for periodic relubrication. The sliding surfaces are treated with MoS2 - molybdenum disulfide. Dynamic load rating C: 30 kN, static load rating C0: 146 kN, maximum angle of tilt: 9°. Manufactured according to DIN ISO 12240-1.

GE 20 ES 2RS FLURO 20x35x16 Spherical Plain Bearing

GE 20 ES 2RS FLURO is a radial spherical plain bearing with dimensions 20x35x16 mm and a steel/steel sliding contact combination. The bearing is designed for periodic relubrication and is equipped with contact seals on both sides. The sliding surfaces are treated with MoS2 - molybdenum disulfide.

Complete identification:

FLURO -> GE 20 ES 2RS -> 20x35x16 mm -> Steel/Steel -> 2RS -> Relubrication

The bearing is manufactured according to DIN ISO 12240-1.

GE 20 ES 2RS FLURO Dimensions

Catalogue dimensions:

d - Bore Diameter: 20 mm
D - Outside Diameter: 35 mm
B - Inner Ring Width: 16 mm
C - Outer Ring Width: 12 mm
dk - Spherical Diameter: 29 mm
Basic Dimensions: 20x35x16 mm
Weight: approx. 0.065 kg

The distinction between B = 16 mm and C = 12 mm is important when comparing spherical plain bearings with apparently identical basic dimensions.

Steel/Steel Sliding Contact Combination

GE 20 ES 2RS FLURO uses the sliding contact combination:

Steel / Steel

The bearing rings are manufactured from bearing steel 100Cr6 / 1.3505 / AISI 52100. The sliding surfaces are treated with molybdenum disulfide - MoS2.

This is a maintenance-required, relubricatable design, rather than a maintenance-free spherical plain bearing with a PTFE-based sliding layer.

MoS2 Sliding Surface

The steel/steel sliding surfaces are treated with:

MoS2 - Molybdenum Disulfide

MoS2 is used on the sliding surfaces as part of the bearing's tribological system.

For this bearing design, the MoS2-treated steel/steel contact works together with periodic lubrication. The bearing should therefore not be confused with maintenance-free spherical plain bearing variants.

2RS Seals

The 2RS designation identifies a bearing with seals on both sides.

Catalogue data for this FLURO version specify:

Sealing: both sides
Seal Type: contact seal
Seal Material: NBR - Nitrile Butadiene Rubber
Seal Material Temperature Range: -30°C to +120°C

The seals help protect the sliding contact surfaces against external contamination and help retain lubricant within the bearing.

Relubrication

GE 20 ES 2RS FLURO is designed for periodic relubrication.

The bearing incorporates a lubrication arrangement with a lubrication groove and hole, allowing lubricant to reach the sliding surfaces during maintenance.

This is an important selection parameter because spherical plain bearings with the same basic dimensions may use different sliding contact materials and may be designed as either maintenance-required or maintenance-free bearings.

Dynamic Load Rating

Catalogue data for this specific FLURO bearing specify:

Dynamic Load Rating C: 30,000 N / 30 kN

The dynamic load rating is a catalogue engineering parameter used when evaluating the bearing under dynamic operating conditions.

It should be considered together with the actual load direction, oscillation angle, lubrication, operating temperature and required service life.

Static Load Rating

The catalogue static load rating is:

Static Load Rating C0: 146,000 N / 146 kN

The static rating is significantly higher than the dynamic rating, which is characteristic of spherical plain bearing load-rating methodology.

The catalogue value should not be interpreted simply as the maximum permissible working load under every operating condition.

Maximum Angle of Tilt

The specified maximum angle of tilt for GE 20 ES 2RS FLURO is:

9°

The spherical geometry allows the inner ring to articulate relative to the outer ring, enabling the bearing to accommodate angular movement within its specified range.

DIN ISO 12240-1

GE 20 ES 2RS FLURO corresponds to:

DIN ISO 12240-1

This standard covers radial spherical plain bearings.

The dimensional series for this bearing is:

Series E

The standard designation and dimensional series are useful when comparing technically corresponding spherical plain bearings.

GE 20 E-2RS and GE 20 ES-2RS

This FLURO bearing can be encountered under the designations:

GE 20 E-2RS
GE 20 ES-2RS

Both designations are associated with the same FLURO product specification:

20x35x16 mm -> Steel/Steel -> Sealed on both sides -> Relubricatable

Keeping both forms in the product description improves catalogue identification when customers search using different manufacturer or industry designation formats.

Technical Specification

Manufacturer / Brand: FLURO
Designation: GE 20 ES 2RS
Alternative Designation: GE 20 E-2RS
Product Type: Radial spherical plain bearing
Dimensional Series: E
Standard: DIN ISO 12240-1
Bore Diameter d: 20 mm
Outside Diameter D: 35 mm
Inner Ring Width B: 16 mm
Outer Ring Width C: 12 mm
Spherical Diameter dk: 29 mm
Basic Dimensions: 20x35x16 mm
Sliding Contact Combination: Steel/Steel
Bearing Steel: 100Cr6 / 1.3505 / AISI 52100
Sliding Surface: MoS2 treated
Sealing: Both sides
Seal Type: Contact
Seal Material: NBR
Relubrication: Yes
Dynamic Load Rating C: 30 kN
Static Load Rating C0: 146 kN
Maximum Angle of Tilt: 9°
Weight: approx. 0.065 kg

Selection and Interchangeability

When selecting an equivalent for GE 20 ES 2RS FLURO, the basic dimensions alone are not sufficient.

The relevant catalogue parameters are:

Designation: GE 20 ES 2RS
Dimensions: 20x35x16 mm
Outer Ring Width C: 12 mm
Sliding Combination: Steel/Steel
Sealing: 2RS
Lubrication: Relubricatable
Dynamic Load Rating: 30 kN
Static Load Rating: 146 kN
Maximum Angle of Tilt: 9°
Standard: DIN ISO 12240-1

Particular attention should be paid to the steel/steel, relubricatable construction, because maintenance-free spherical plain bearings with identical dimensions may use a fundamentally different sliding contact system.

FAQ

What are the dimensions of GE 20 ES 2RS FLURO?

The basic dimensions are 20x35x16 mm. Bore diameter d is 20 mm, outside diameter D is 35 mm and inner ring width B is 16 mm. Outer ring width C is 12 mm and spherical diameter dk is 29 mm.

What type of bearing is GE 20 ES 2RS FLURO?

It is a radial spherical plain bearing according to DIN ISO 12240-1.

What sliding contact combination does it use?

GE 20 ES 2RS FLURO uses a steel/steel sliding contact combination.

Does GE 20 ES 2RS FLURO require lubrication?

Yes. It is a maintenance-required, relubricatable bearing with a lubrication groove and hole.

What does 2RS mean?

2RS indicates that the bearing is sealed on both sides. This FLURO version uses contact seals made from NBR.

What is the dynamic load rating?

The catalogue dynamic load rating C is 30 kN.

What is the static load rating?

The catalogue static load rating C0 is 146 kN.

What is the maximum angle of tilt?

The specified maximum angle of tilt is 9°.

Is GE 20 ES 2RS maintenance-free?

No. This is a steel/steel spherical plain bearing designed for periodic relubrication.

What standard applies to GE 20 ES 2RS?

The bearing corresponds to DIN ISO 12240-1 for radial spherical plain bearings.
